Supmea Temperature Sensor

Supmea’s Temperature Sensors are built to deliver high-accuracy, stable, and long-lasting performance across a wide range of industrial applications. Whether using RTD or thermocouple elements, these sensors are engineered with mineral-insulated sheaths and robust materials to withstand extreme temperatures, vibration, and corrosive environments. From standard immersion probes to flexible, bendable designs, Supmea offers a comprehensive range of temperature sensing solutions tailored to meet the needs of industries such as oil and gas, chemical processing, water treatment, and manufacturing.

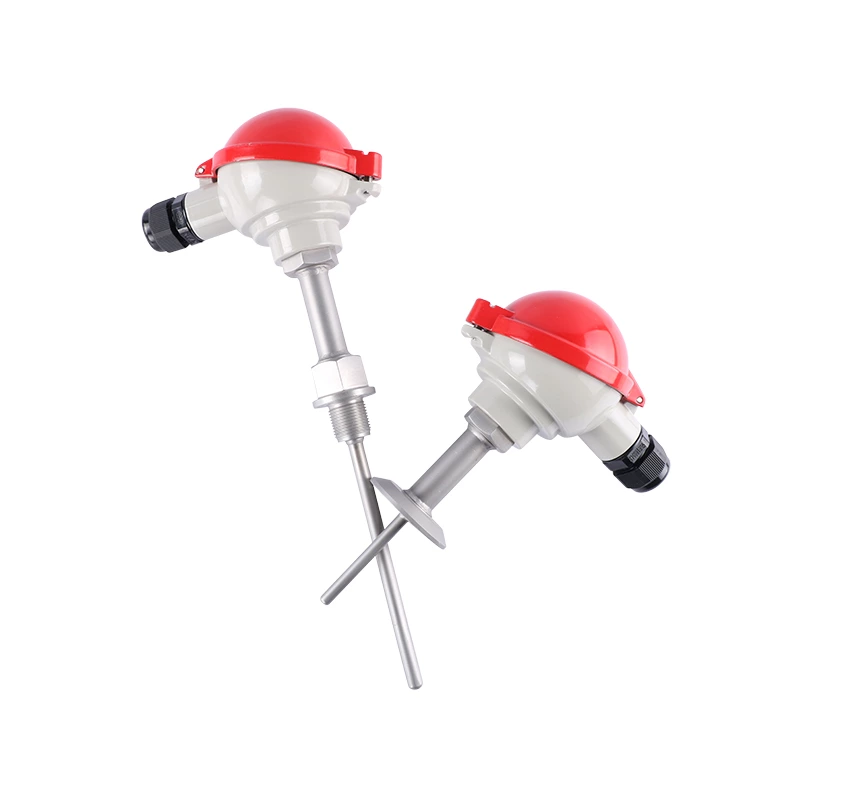

SUP-WZPK

The SUP-WZPK is a high-accuracy, mineral-insulated RTD temperature sensor designed for reliable and fast-response temperature measurement in industrial environments. Its robust construction and flexible design make it ideal for harsh and space-constrained applications.

Product Data Sheet - SUP-WZPK

Instruction Manual - SUP-WZPK

The SUP-WZPK RTD sensor features a mineral-insulated stainless steel sheath filled with magnesium oxide, providing excellent thermal conductivity and electrical insulation. It supports platinum elements such as Pt100 and Pt1000, offering precise temperature readings across a wide range from -200°C to +850°C. The sensor’s bendable sheath allows for easy installation in tight or complex piping systems, while its vibration-resistant design ensures long-term stability and durability.

Applications

Tank and Pipeline Temperature Monitoring
Chemical and Petrochemical Processing
Power Generation and Boilers
Food and Beverage Industry
Pharmaceutical Manufacturing
HVAC and Environmental Monitoring

Specifications

Sensor Type Pt100, Pt1000
Temperature Range -200°C to +850°C
Output RTD or 4–20mA (with transmitter)
Power Supply DC 12–40V (with transmitter)
Sheath Material SUS316
Sheath Diameter 0.8 mm to 12 mm
Max Length Up to 30 meters
Accuracy Class Class A or B (IEC 751 / JIS C 1604)
Installation Flexible, bendable sheath (except 70 mm tip)
Protection High resistance to vibration and corrosion

Benefits

Wide Temperature Range: Operates from -200°C to +850°C.

High Accuracy: Platinum RTD elements ensure stable and precise readings.

Fast Response Time: Small thermal mass enables quick reaction to temperature changes.

Flexible Installation: Bendable sheath fits into tight or curved spaces.

Durable Construction: Resistant to vibration, corrosion, and high pressure.

Customizable: Available in various diameters and lengths to suit different
