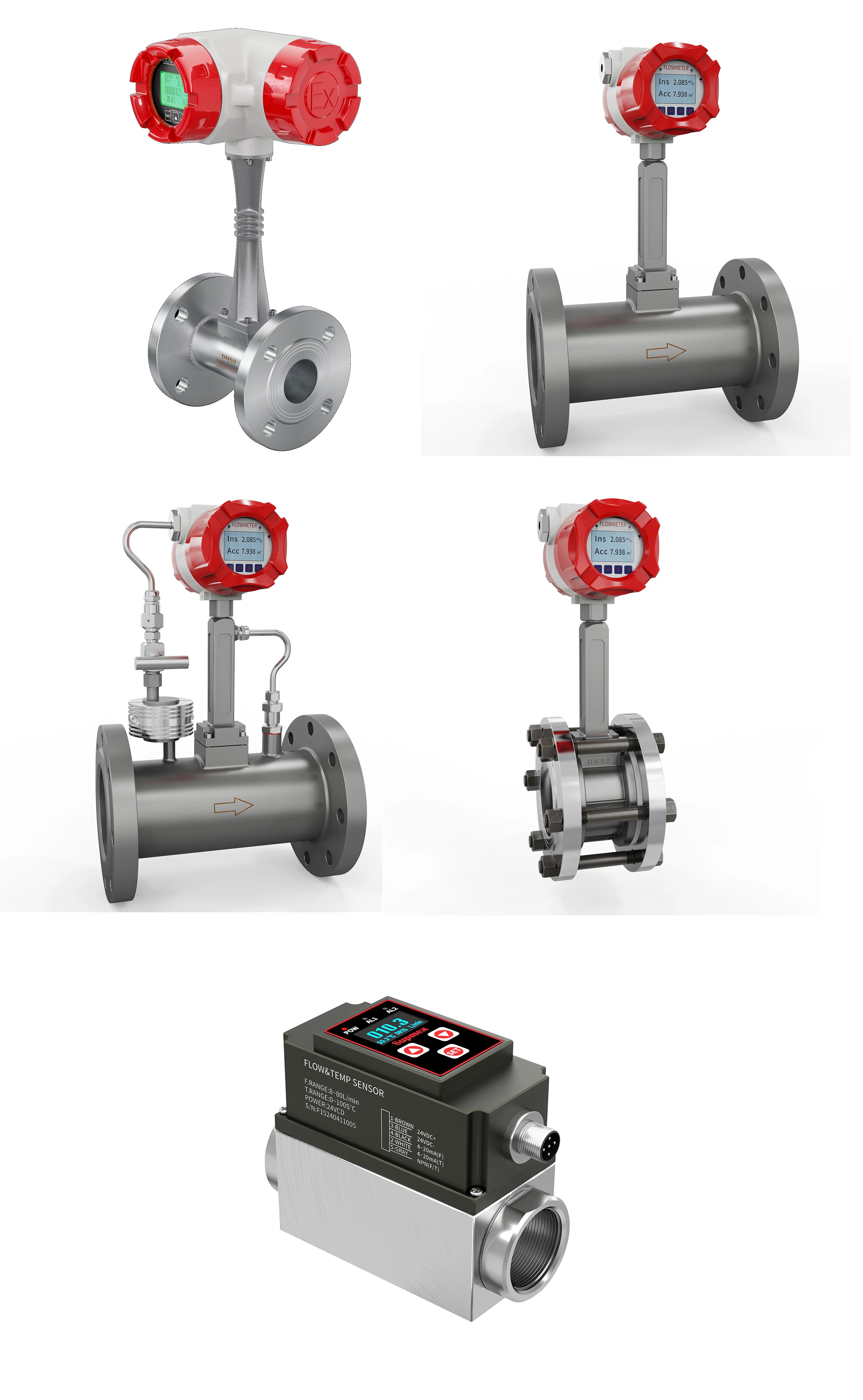

Working on the Kármán-vortex principle, a bluff body inside the meter generates vortices whose frequency is proportional to flow velocity; counting these vortices yields instantaneous and totalised flow. The pipeline version covers DN10–DN500 with ±1.0 % accuracy for liquids and ±1.5 % for gases or steam, and retains a low pressure drop thanks to its streamlined body. Standard outputs include isolated 4-20 mA, frequency/pulse and RS-485 (Modbus-RTU), powered either by 24 V DC or an internal 3.6 V lithium battery for remote sites. With no moving parts, the SUP-LUGB offers long-term stability and requires only minimal maintenance.

• Saturated or super-heated steam metering in boilers and district heating networks
• Compressed-air and natural-gas distribution lines
• Clean or slightly dirty process liquids in chemical, food & beverage and water utilities
• Energy-monitoring loops in HVAC or industrial plants

• Measuring medium: liquids, gases & steam (incl. saturated/ super-heated)
• Nominal diameters: DN10 – DN500 (pipeline type)
• Accuracy: ±1.0 % (liquid), ±1.5 % (gas/steam) of reading
• Turndown ratio: 8 : 1 at ρ=1 000 kg m³ (liquid) / 1.2 kg m³ (gas)
• Process pressure: up to PN2.5 MPa (factory default; higher ratings on request)
• Process temperature: -40 °C … +150 C (standard), +260 C / +320 °C / +420 °C high-temp options
• Outputs: frequency/pulse, isolated 4-20 mA, RS-485 (Modbus-RTU)
• Power supply: 24 V DC ±10 % or 3.6 V lithium battery (≥ 2 years life)
• Enclosure & protection: 304/316 SS body, converter IP65 (IP68 on request)

• High accuracy without moving parts – ±1.0 %/±1.5 % ensures reliable billing or energy balance while eliminating wear points.
• Wide operating window – handles -40 °C to +320 °C media, PN 2.5 MPa pressures and an 8 : 1 turndown ratio.
• Low installation cost – wafer or flange fitment with small pressure loss; no straight-run density/pressure sensors to mount.
• Flexible I/O & power – 24 V DC or battery plus 4-20 mA, pulse and Modbus ease PLC or SCADA integration.
• Minimal maintenance – solid-state sensing means no periodic recalibration or lubrication.

This advanced vortex meter uses the Kármán vortex shedding principle to determine flow velocity, enhanced by integrated temperature and pressure sensors that calculate true mass or energy flow. With compensation, measurement accuracy for steam or gas improves significantly, making it ideal for critical utility metering. The device features a robust stainless-steel body, support for 4-20 mA, pulse, and RS-485 Modbus outputs, and is available with a local or remote converter. Powered by 24 V DC, the meter maintains ±1.5 % accuracy for compensated gas/steam and up to ±1.0 % for liquids, even in fluctuating process environments.

• Steam energy metering in boiler systems and district heating
• Compressed air and natural gas consumption monitoring
• Industrial HVAC energy audits and process optimization
• Mass flow measurement for food & beverage, petrochemical, and power plants

• Medium: Liquid, gas, saturated/super-heated steam
• Pipe size: DN15 – DN300 (wafer/flange connection)
• Accuracy:
  • ±1.0 % (liquid)
  • ±1.5 % (gas/steam with compensation)
• Turndown ratio: 8:1 or better
• Operating pressure: up to 2.5 MPa
• Temperature range:
  • Flowmeter body: -40 … +420 °C
  • Temperature sensor: PT100
  • Pressure sensor: up to 2.5 MPa
• Outputs: 4-20 mA, pulse, RS-485 Modbus (HART optional)
• Power supply: 24 V DC
• Material: 304/316 stainless steel body
• Protection class: IP65 (optional IP68 for remote electronics)

• Accurate mass and energy flow readings with built-in temperature and pressure compensation
• Highly reliable in fluctuating pressure or temperature applications like steam or gas pipelines
• All-in-one design reduces installation space and wiring complexity
• Output flexibility: 4-20 mA, pulse, RS-485 (Modbus), with optional HART
• Sturdy and maintenance-free: all-metal body and no moving parts for long-term durability

Using the Kármán vortex shedding principle, this flowmeter detects flow velocity by measuring the frequency of vortices generated behind a bluff body. Its wafer-style body allows for quick installation on DN15–DN300 pipelines with minimal space requirements and pressure loss. Built-in electronics provide real-time flow data through 4-20 mA, pulse, and RS-485 Modbus outputs. With stainless-steel construction, optional high-temperature capability (up to 420 °C), and maintenance-free design, it suits various industrial and utility applications.

• HVAC and building utility flow monitoring
• Steam flow measurement in process and boiler lines
• Industrial gas and air flow in compressed systems
• General-purpose liquid flow in water, oil, and chemical lines

• Installation type: Wafer (sandwich between flanges)
• Nominal diameter: DN15 – DN300
• Medium: Liquids, gases, steam
• Accuracy:
• ±1.0 % for liquids
• ±1.5 % for gases and steam
• Pressure rating: Up to PN2.5 MPa
• Temperature range: -40 … +420 °C (optional high-temp models)
• Outputs: 4-20 mA, pulse, RS-485 (Modbus-RTU), HART (optional)
• Power supply: 24 V DC or 3.6 V battery (optional)
• Material: 304 / 316 stainless steel
• Protection class: IP65 (IP68 optional for remote electronics)

• Space-saving wafer design for fast flange-to-flange installation
• No moving parts – stable accuracy and long service life
• Supports multiple media types including steam, compressed air, and clean liquids
• Available with or without temperature & pressure compensation for flexible applications
• Standard outputs for easy system integration (4-20 mA, pulse, RS-485 Modbus)

Using the principle of Kármán vortex street, the SUP-LUGB-C detects flow rate by measuring the frequency of vortices shed by a bluff body. Its intelligent anti-vibration algorithm distinguishes between actual flow signals and mechanical noise, making it suitable for challenging industrial environments. Available with optional temperature and pressure sensors, it enables mass and energy flow calculations in steam and gas pipelines. Outputs include 4-20 mA, pulse, and RS-485 Modbus, ensuring seamless integration with control systems.

• Steam distribution in boiler systems and district heating networks
• Compressed air and natural gas pipelines in industrial plants
• Flow measurement in vibrating systems such as pump discharge lines
• HVAC energy monitoring and process flow control

• Medium: Liquid, gas, saturated/super-heated steam
• Pipe size range: DN15 – DN300 (wafer or flange connection)
• Accuracy:
  • ±1.0 % for liquids
  • ±1.5 % for gases and steam
• Pressure rating: Up to PN2.5 MPa
• Temperature range: -40 … +420 °C (with high-temp version)
• Anti-vibration processing: Digital filtering and signal discrimination algorithm
• Outputs: 4-20 mA, pulse, RS-485 (Modbus), HART (optional)
• Power supply: 24 V DC
• Material: 304 / 316 stainless steel
• Protection class: IP65 (IP68 optional with remote electronics)

• Anti-vibration technology for stable, accurate flow measurement in high-vibration pipelines
• All-in-one design supports volumetric or compensated mass flow
• Digital signal processing minimizes false readings and signal drift
• Multiple output options for flexible connectivity: 4-20 mA, pulse, RS-485, and HART (optional)
• Rugged stainless-steel body for durability in steam, gas, and fluid systems

Utilizing the Kármán vortex shedding principle, the SUP-FVM200 detects flow rate by capturing the frequency of vortices generated by a built-in bluff body. Its micro-scale design allows for accurate flow detection in pipelines as small as DN10, with excellent repeatability and stability. The meter supports 4-20 mA, pulse, and RS-485 Modbus outputs, making it easy to integrate into automation or monitoring systems. Its compact size and anti-interference electronics ensure performance even in complex installation conditions.

• Small-scale steam and gas flow in laboratories and cleanrooms
• Industrial instrumentation for chemical dosing or additive injection
• HVAC systems with limited piping space
• Research, pilot plants, and OEM integration

• Measuring medium: Liquid, gas, steam
• Nominal diameters: DN10 – DN40
• Accuracy:
  • ±1.0 % for liquid
  • ±1.5 % for gas/steam
  • Turndown ratio: 8:1
• Operating temperature: -20 … +250 °C
• Operating pressure: Up to 1.6 MPa
• Outputs: 4-20 mA, pulse, RS-485 (Modbus-RTU)
• Power supply: 24 V DC
• Material: 304 / 316 stainless steel
• Protection rating: IP65

• Optimized for small pipelines – ideal for DN10 to DN40
• High sensitivity for low flow rates in liquid, gas, or steam
• Compact and rugged design fits tight installations without sacrificing durability
• Multi-output interface – supports 4-20 mA, pulse, and RS-485 Modbus
• Minimal maintenance with no moving parts and strong resistance to vibration
