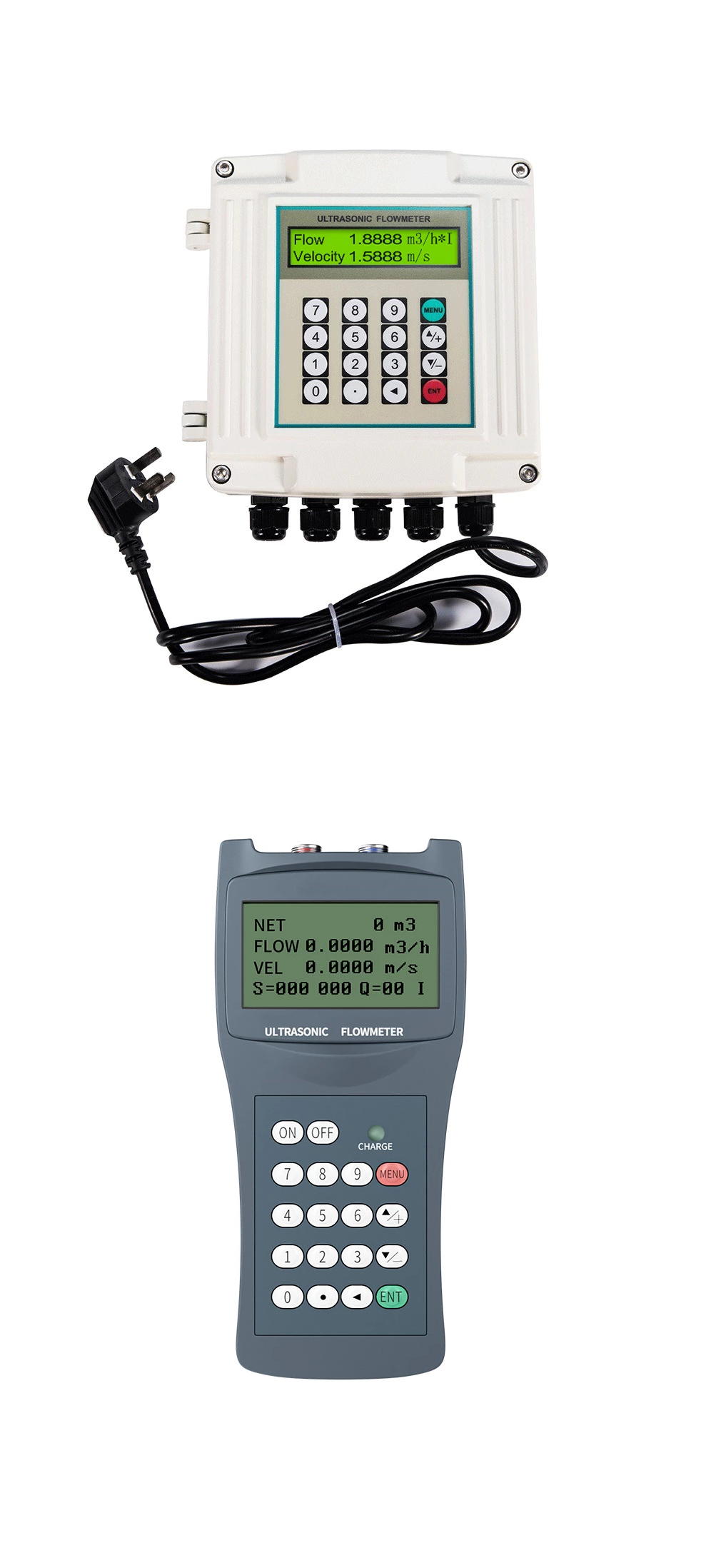

Using transit-time ultrasonic technology, the SUP-2100H measures flow by detecting the time difference between upstream and downstream signals. It supports a wide pipe size range and includes a built-in data logger for convenient data tracking.

Applications:

• - HVAC and building water systems
• - Industrial flow audits and diagnostics
• - Water treatment and distribution
• - Temporary flow verification

Specifications:

•  Pipe Size: DN32–DN6000
•  Accuracy: ±1%
•  Power: 3 AAA Ni-MH batteries (rechargeable)
•  Display: 4×16 English characters
•  Data Logger: 2000+ lines
•  Case Material: ABS
•  Operating Temp: -20°C to 60°C (converter), -30°C to 160°C (transducer)

• Non-invasive clamp-on sensors
•  Lightweight and battery-powered for portability
•  Built-in data logger with over 2000 records
•  Supports multiple pipe materials and sizes
•  Simple interface with English/Chinese display

This flowmeter uses transit-time ultrasonic technology to measure flow from outside the pipe. It features a wall-mounted converter with multiple output options and a built-in data logger, making it ideal for continuous monitoring in industrial environments.

Applications:

•  Water and wastewater management
•  Industrial process monitoring
•  Energy and utility metering
•  Chemical and food industries

Specifications:

•  Pipe Size: DN32–DN6000
•  Accuracy: ±1%
•  Power Supply: 10–36VDC or 85–264VAC
•  Output: 4–20mA, Pulse, RS485 (Modbus)
•  Operating Temp: -20°C to 60°C (converter), -30°C to 160°C (transducer)
•  Case Material: ABS
•  Ingress Protection: IP65

• Non-invasive clamp-on installation
•  No pressure drop or pipe cutting
•  Built-in data logger and RS485 communication
•  Suitable for large pipe diameters
•  Reliable performance in harsh conditions
