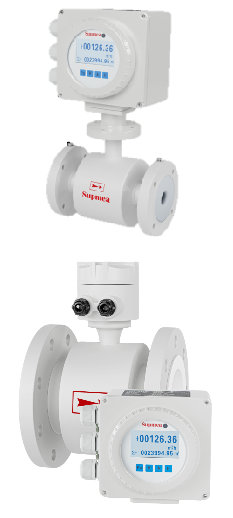

The FMC240 Electromagnetic Flowmeter utilizes Faraday’s law of electromagnetic induction to measure the volumetric flow of conductive fluids. With no moving parts and a robust design, it ensures long-term stability and minimal maintenance. It supports bidirectional flow measurement and is unaffected by temperature, pressure, or fluid density.

Applications:

•  Water and wastewater treatment
•  Chemical and pharmaceutical industries
•  Food and beverage processing
•  Pulp and paper manufacturing
•  Environmental monitoring

Specifications:

•  Nominal Diameter: DN10–DN1000
•  Accuracy: ±0.5% (flow speed > 0.5 m/s)
•  Liner Material: PTFE, PFA, F46, Neoprene
•  Electrode Material: 316L SS, Hastelloy C/B, Titanium, Tantalum, Platinum
•  Power Supply: 24VDC / 220VAC
•  Protection Class: IP65 (IP68 optional)
•  Communication: RS485 Modbus, Pulse, 4–20mA

•  High accuracy (±0.5% of reading)
•  No pressure loss due to obstruction-free design
•  Resistant to corrosion and abrasion
•  Supports RS485 Modbus and 4–20mA output
•  Easy installation and maintenance

The FMC240 Remote Type Electromagnetic Flowmeter offers flexible installation by separating the sensor and converter. Designed for harsh environments or inaccessible locations, it provides accurate flow measurement with IP68-rated sensors and IP65-rated transmitters.

Applications:

•  Underground water distribution
•  Industrial pipelines in remote areas
•  Irrigation and agricultural systems
•  Municipal water supply networks

Specifications:

•  Nominal Diameter: DN15–DN1200
•  Accuracy: ±0.5% F.S.
•  Liner Material: PTFE, PFA, F46, Neoprene
•  Electrode Material: 316L SS, Hastelloy, Titanium, Tantalum
•  Power Supply: 85–245VAC or 22–26VDC
•  Protection Class: IP65 (converter), IP68 (sensor)
•  Communication: RS485, Pulse, 4–20mA

•  Remote monitoring capability
•  Enhanced ingress protection (IP68 sensor)
•  Suitable for underground or submerged installations
•  Stable performance in high-vibration areas
•  Compatible with SCADA and automation systems

The FMC240 Stainless Steel Body Electromagnetic Flowmeter is engineered for aggressive media and corrosive environments. Its stainless steel construction enhances durability while maintaining high measurement accuracy and reliability.

Applications:

•  Chemical processing plants
•  Marine and offshore systems
•  Mining and metallurgy
•  Acid and alkali transfer lines

Specifications:

•  Body Material: Stainless Steel 304/316L
•  Nominal Diameter: DN15–DN1000
•  Accuracy: ±0.5%
•  Liner Material: PTFE, PFA, F46
•  Electrode Material: 316L SS, Hastelloy, Titanium
•  Power Supply: 24VDC / 220VAC
•  Protection Class: IP65/IP68

•  Superior corrosion resistance
•  Long service life in harsh conditions
•  Stable readings unaffected by fluid properties
•  Maintenance-free operation
•  Customizable flange and liner options

The FMC800 Battery Powered Electromagnetic Flowmeter operates independently using a long-life lithium battery, making it ideal for locations without access to external power. It supports wireless communication and offers reliable flow data logging and transmission.

Applications:

•  Remote water metering
•  Agricultural irrigation systems
•  Temporary flow monitoring setups
•  Utility and municipal water networks

Specifications:

•  Nominal Diameter: DN3–DN2100
•  Accuracy: ±0.5%
•  Power: 3.6V Lithium Battery (optional dual power)
•  Communication: RS485, GPRS, 4G
•  Liner Material: PTFE, PFA, Neoprene
•  Electrode Material: 316L SS, Hastelloy, Titanium
•  Protection Class: IP68

•  No external power required
•  Up to 5 years of battery life
•  IP68-rated for submersible use
•  Optional GPRS/4G wireless communication
•  Compact and easy to install

Operating on Faraday’s Law, the sensor generates an induced voltage proportional to flow velocity, ensuring ±0.5 % F.S. accuracy over a turndown of 1 : 100. The meter ships as a compact (integral) or remote model, with 85–245 VAC or 24 V DC power and galvanically-isolated 4-20 mA / pulse / RS-485 outputs. Neoprene, PFA, PTFE or F46 liners coupled with 316 L, Hastelloy-C, Ti, Ta or Pt electrodes resist abrasion and corrosion. Wide conductivity tolerance (water ≥ 20 µS/cm, other liquids ≥ 5 µS/cm) and IP65 converter / IP68 sensor sealing enable reliable operation in buried or flooded installations.

• Nominal size: DN15 – DN1200
• Accuracy: ±0.5 % F.S. (> 1 m/s) or ±0.5 % F.S. ± 2 mm/s (< 1 m/s)
• Conductivity: Water ≥ 20 µS/cm; other media ≥ 5 µS/cm
• Liners: CR, PU, PTFE, F46, PFA
• Electrode materials: 316 L, Hastelloy B/C, Ti, Ta, Pt
• Power supply: 85–245 VAC 50/60 Hz or 22–26 V DC
• Outputs: 4-20 mA, pulse, RS-485/Modbus
• Protection: IP65 (converter), IP68 (sensor)

• ±0.5 % accuracy without moving parts—zero pressure loss & no wear
• Broad chemical compatibility via changeable liners and electrodes
• Bidirectional measurement with auto-empty-pipe detection
• Dual power options and multi-signal outputs simplify integration
• Optional remote converter keeps electronics clear of vibration/heat

The streamlined probe houses ABS or polyurethane insulation with 316 L / Hastelloy electrodes to withstand corrosive and abrasive fluids. A local or remote transmitter conditions the signal, delivering flow data via 4-20 mA, pulse or RS-485 (with optional HART/GPRS). With a 1.5 % accuracy class and velocity range up to 15 m/s, it meets the demands of potable water distribution, raw-water intake and process cooling loops. IP65/IP68 protection plus -20 °C to +80 °C media tolerance support outdoor pits and underground vaults.

• Municipal trunk mains
• Irrigation canals
• Cooling-water return
• Wastewater outfalls
• Mining slurries

• Pipe size: DN100 - DN2000
• Accuracy: ±1.5 % of reading
• Max velocity: 15 m/s
• Process connection: 2″ BSP/NPT thread or flange
• Operating temp: -20 - +80 °C (medium)
• Protection: IP65 (standard), IP68 remote sensor
• Outputs: 4-20 mA / pulse + RS-485; HART & GSM optional

• Install/maintain without cutting pipe or stopping flow
• Suits very large lines at a fraction of full-bore cost
• Hot-tap option for rapid retrofit projects
• Multiple power choices: 220 VAC, 24 V DC or battery
• Self-diagnostics for empty-pipe, excitation and signal alarms
