SIEMENS SITRANS Level Controller

The SITRANS LT500 represents the next evolution in level, flow, and pump controllers designed for radar and ultrasonic transmitters, as well as transducers, or any 2-wire 4-20 mA device. It serves as the ideal solution for various level control applications and comes equipped with features such as single and dual point measurements, 6 relays, and support for communication protocols including Modbus RTU, HART, PROFIBUS DP, PROFIBUS PA, and PROFINET.

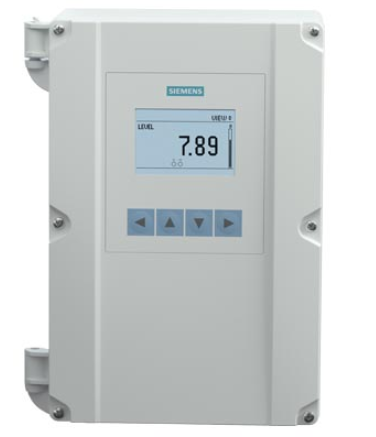

SIEMENS SITRANS LT500 Level Controller,

SITRANS LT500 is a versatile and advanced level, flow, and pump controller designed to work with radar and ultrasonic transmitters, as well as other 2-wire 4-20 mA devices. With features like single and dual point measurements, 6 relays, and support for communication protocols such as Modbus RTU, HART, PROFIBUS DP, PROFIBUS PA, and PROFINET, it offers comprehensive functionality for various level control applications.

Catalog Sheet SITRANS LT500

Equipment Manual Modbus RTU Data Map - SITRANS LT500 Ultrasonic

Equipment Manual HART Field Device Specification - SITRANS LT500

Equipment Manual Profibus PROFINET Slot Index - SITRANS LT500

Operating Instructions SITRANS LT500 with Ultrasonic Transducer Inputs

Compact Operating Instructions SITRANS LT500 with Ultrasonic Transducer Inputs

Compact Operating Instructions SITRANS LT500 with mA/HART sensor inputs

Application Examples SITRANS LT500 - Parameter Configuration Charts

Operating Instructions SITRANS LVL200S Two-wire 8/16 mA

Level Measurement Brochures

Level Measurement Flyers

Process Instrumentaton Brochures

Application

SITRANS LT500 mA HART version can be used with SITRANS LR110, LR120, Probe LU240 or any level device generating a mA signal. The ultrasonic version can connect any EchoMax or legacy transducer. SITRANS LT500 offers true dual point monitoring and digital communications. SITRANS LT500 is low maintenance and economical. With its advanced control functions, it can operate pumps during lower cost time periods and manage pump rosters for efficiency.

SITRANS LT500 will monitor open channel flow and features advanced relay alarming and pump control functions as well as volume conversion.

Key Applications: wet wells, flumes/weirs, bar screen control, hoppers, chemical storage, liquid storage, crusher bins, dry solids storage

Measurement types	Level, distance, space, volume, differential, average, head and Open Channel Flow
Measuring range	Sensor based with SITRANS LR110/LR120 and SITRANS Probe LU240, and ultrasonic transducers
Communications	Up to three 4 to 20 mA outputs. Fieldbus option cards: Modbus RTU, HART, PROFIBUS DP, PROFIBUS PA, PROFINET
Languages	EN, DE, FR, ES, CN, RU, PT, IT, JP, SW, DU, DA, FI, PO
Outputs	2 x 4 ... 20 mA
	+ 1 x 4-20 mA output with HART card
	6 x relay
	Fieldbus

Benefits

No specialists required – Quick Start Wizards with 6 different display views and optional view information
Precise measurement with multiple options for liquids or solids using various technologies to meet the application needs - compatible with SITRANS LR110/120, SITRANS Probe LU240, ultrasonic transducers, and generic mA inputs
Flexible setup and ease of configuration saves time – 6 fully programmable relays rated at 5A for pump control and alarming
Data recording for easy analysis and potential process optimization – datalogging, parameter backup, and copy configuration on micro memory card
Immediate status and diagnostic data to your system ensuring improved process quality and intelligent, faster data for operations – digitalization ready with HART, Modbus RTU, PROFIBUS DP, PROFIBUS PA or PROFINET options and over 175 diagnostics
