SIEMENS Display

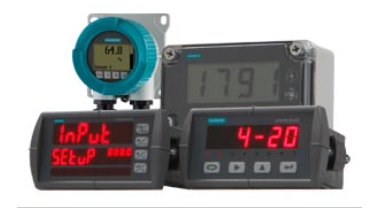

Remote digital displays make measurement data visible and accessible from a remote location. They can be used with all types of field instruments in varying process conditions, and are easy to set up and program. Bring critical application data to a location that is convenient.

SIEMENS SITRANS RD100

SIEMENS SITRANS RD150

SIEMENS SITRANS RD200

SIEMENS SITRANS RD300

SIEMENS SITRANS RD100

The SITRANS RD100 is a 2-wire loop powered enclosed remote digital display designed for process instrumentation. Its calibration involves a quick two-step process, simplifying installation. This makes it a user-friendly display solution.

Catalog Sheet SITRANS RD100

Supplementary Components

Process Instrumentation Brochures

Manual SITRANS RD100

The RD100 is very versatile. It can be installed indoors or outdoors, in hot or cold environments, and in safe or hazardous areas.

It has been approved by FM and CSA as Intrinsically Safe and nonincendive, and operates from -40 to +85 ºC (-40 to +185 ºF), adding only 1 V to the loop. Calibration consists of a quick two-step process involving the adjustment of only two non-interacting potentiometers.

Key Applications: remotely displays process variables in level, flow, pressure, temperature, and weighing applications, in a 4 to 20 mA loop.

	SITRANS RD100
Input Types	4 to 20 mA
Display	1.0 inch (2.54 cm) high LCD
	Numeric range from -1 000 to 1 999


Operating Temperature	-40 to 85 °C (-40 to 185 °F)
Key Applications	Remotely displays process variables in level, flow, pressure, temperature and weighing applications, in a 4 to 20 mA loop

Benefits

Easy setup
Approved for hazardous locations
NEMA 4X, IP67 impact-resistant enclosure
Simple two-step calibration
Two modes of input allow for easy servicing, with no interruption of loop required

More details

SIEMENS SITRANS RD150

The SITRANS RD150 serves as a remote digital display for 4 to 20 mA and HART devices. It offers an easy-to-use basic configuration for HART instruments via HART commands, as well as advanced configuration for connected instruments using USB and a computer. This flexibility allows for convenient setup and management of instruments.

Catalog Sheet SITRANS RD150

Supplementary Components

Process Instrumentation Brochures

Operating Instruction SITRANS RD150

More details

SIEMENS SITRANS RD200

The SITRANS RD200 is a universal input, panel mount remote digital display tailored for process instrumentation. It enables remote data collection and logging through the provided configuration and logging software, allowing presentation from up to 100 displays on a local computer. This feature-rich display offers convenient data management and accessibility.

Catalog Sheet SITRANS RD200

Supplementary Components

Process Instrumentation Brochures

Operating Instruction SITRANS RD200 Enclosures

Operating Instruction SITRANS RD200 Communication and Displays

Area of application Remote digital display with universal input for control panel mounting for process measuring equipment. Supports RTD, thermocouple, current and voltage inputs. Supporting software enables remote configuration and data logging.

	SITRANS RD200
Input Types	Universal current, voltage, RTD, thermocouple
Display	14 mm (0.56 inch) high LED
	2 X option for 30.5 mm (1.2 inch) high, red LED
	Numeric range from -1 999 to 9 999
	Eight intensity levels
Operating Temperature	-40 to 65 °C (-40 to 149 °F)
Options	Large display for improved visibility at greater distance
	Relays for alarm indication or process control applications
	Pump alternation control
	4 to 20 mA Analog output
	NEMA 4 and 4X field enclosures
Key Applications	Tank farms, pump alternation control, local or remote display of level, temperature, flow, pressure and weighing instrument values, PC monitoring and data logging with RD Software

Benefits

Easy setup and programming via front panel buttons or remotely using RD software
Display readable in sunlight in varying intensities
Single or dual 24 V DC transmitter power supply
Serial communication using built in protocol or Modbus RTU
Optional relays for alarm indication or process control applications
Linear or square root function supported
Meter Copy feature to reduce setup time, cost, and errors
RD software supports remote configuration, monitoring, and logging
2X option for 30.5 mm (1.2 inch) high, red LED display

More details

SIEMENS SITRANS RD300

The RD300 is a versatile remote display designed for a variety of process instruments such as level, flow, pressure, and weighing devices. In addition to its display capabilities, it serves as a user-friendly rate/totalizer suitable for flow rate, total, and control applications. With the free downloadable RD Software, data can be conveniently collected, logged, and presented on a local computer, enhancing accessibility and ease of use.

Catalog Sheet SITRANS RD300

Supplementary Components

Process Instrumentation Brochures

Operating Instruction SITRANS RD300 Dual-Input Process Meter

Operating Instruction SITRANS RD300 DIN-Rail Mounting Kit

Operating Instruction SITRANS RD300 Process & Rate/Totalizer

Operating Instruction SITRANS RD300 Expansion Modules

Area of application: Universal, easy-to-operate, remote digital display for control panel mounting for process instruments. Delivers flow rate/total values in various applications (pumped flow rate, summation and control)

	SITRANS RD300
Input Types	4 to 20 mA, 0 to 10 V DC
Display	Main display: 0.6 inch (15 mm) high, red LEDs
	Second display: 0.46 inch (12 mm) high, red LEDs,
	6-digits: each (-99 999 to 999 999)

Operating Temperature	-40 to 65 °C (-40 to 149 °F)
Options	Up to 8 relays and 8 digital I/O for process control and alarming
	Dual-Input option with math functions
	Pump alternation control
	4 to 20 mA Analog output
	NEMA 4 and 4X field enclosures
Key Applications	Tank farms, pump alternation control, local or remote display of level, flow, pressure and weighing instrument values, PC monitoring and data logging with RD Software

Benefits

Easy setup and programming via front panel buttons or using free RD software available via USB drive
Display readable in sunlight in varying intensities
Single or dual 24 V DC transmitter power supply
Serial communication using built-in protocol or Modbus RTU
Supports up to 8 relays and 8 digital I/O for process control and alarming
32-Point linearization, square root or exponential linearization
Multi-pump alternation control
9-digit totalizer with total overflow feature
Large dual-line, 6-digit display
Configure, monitor, and datalog from a PC
Dual-input option with math functions

More details

Brands

Product Types

Industries We Serve

SIEMENS Display

SIEMENS SITRANS RD100

SIEMENS SITRANS RD150

SIEMENS SITRANS RD200

SIEMENS SITRANS RD300

SIEMENS SITRANS RD100

Benefits

SIEMENS SITRANS RD150

Benefits

SIEMENS SITRANS RD200

Benefits

SIEMENS SITRANS RD300

Benefits

Input Types	4 to 20 mA or HART
Display	5 Digits
Display	7 x 13 mm (0.28 x 0.51 inch)
Operating Temperature	-20 to 70 °C (-4 to 158 °F)
Options	Plastic, stainless steel or aluminum housings up to IP68
Key Applications	Remotely displays process variables in level, flow, pressure, temperature and weighing applications, in a 4 to 20 mA HART loop
