SIEMENS SITRANS Pressure / Differential Pressure Transmitters and Transducers

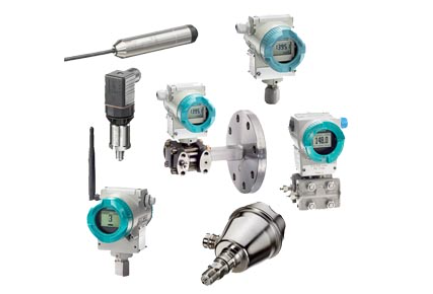

Siemens offers the SITRANS P pressure transmitter line, a comprehensive range of pressure measuring products designed to be adaptable to the specific requirements of different processes, infrastructures, and ambient conditions. This series provides various performance levels, load capacities, and material ranges to meet diverse needs. The SITRANS P series is known for its precision, robustness, and user-friendly design. Furthermore, these pressure measurement devices comply with industry standards and international certifications, making them well-suited for the increasingly complex tasks of the process industry


SIEMENS SITRANS P200/210/220 FOR PRESSURE TRANSMITTER/ TRANSDUCER

The SITRANS P200, P210, and P220 are versatile compact single-range transmitters tailored for measuring absolute and gauge pressure. They make use of two stainless steel sensors (P210 and P220) and one ceramic diaphragm sensor (P200), allowing for the measurement of process, absolute, and hydrostatic pressure. Moreover, the output signal can be optionally converted into a 4-20 mA or 0-10 V signal as per the determined pressure, providing flexibility for a wide range of industrial pressure measurement applications.



More details

SIEMENS SITRANS P Compact FOR GAUGE AND ABSOLUTE PRESSURE

The SITRANS P Compact pressure transmitter is tailored to meet the specific demands of the food, pharmaceutical, and biotechnology industries. It is constructed using high-quality materials to ensure compliance with hygiene regulations, with a focus on achieving high surface quality. The system can also be electropolished, and its process connection features various aseptic connections in line with hygienic design standards. Furthermore, the fully welded stainless steel enclosure can be configured with a degree of protection up to IP67. Additionally, with the use of appropriate temperature decouplers, the SITRANS P Compact transmitter can be utilized for temperatures up to 200°C (392°F).




More details

SIEMENS SITRANS P300 for Gauge and Absolute Pressure

The SITRANS P 300 is renowned for its measurement precision and durability, akin to the SITRANS P DSIII, and features a stainless steel housing with a laser-printed nameplate. This, combined with a wide array of hygienic process connections, makes it well-suited for applications in the food & beverages industry and pharmaceutical processes. With a maximum measurement deviation of 0.075% and a proven operating philosophy, it seamlessly integrates into the SITRANS P family.
This digital pressure transmitter caters to both relative and absolute pressure measurements, offering conventional thread versions as well as flush-mounted versions, with many of the latter suitable for food and pharmaceutical applications, meeting EHEDG and 3A hygiene requirements.
The output signal is a load-independent direct current from 4 to 20 mA or a PROFIBUS PA or FOUNDATION Fieldbus signal, linearly proportional to the input pressure. Communication is achieved via HART protocol or PROFIBUS PA or FOUNDATION Fieldbus interface, and basic settings can be easily configured on-site using three buttons.
Encased in a single-chamber stainless steel enclosure, the pressure transmitter is approved for "intrinsically safe" type of protection and can be utilized in zone 1 or zone 0 hazardous areas.




More details

SIEMENS SITRANS P320/420

The SITRANS P320/420 represents the pioneering line of pressure transmitters featuring remote safety handling, empowering users to program all devices from the control room rather than individually on site. This significantly reduces commissioning time, particularly beneficial for applications necessitating functional safety. Additionally, with a test period of up to 15 years compared to the standard 2 years, it ensures minimal maintenance costs.



More details

SIEMENS SITRANS P300 WITH PMC CONNECTION

The SITRANS P300 pressure transmitter has been designed with special process connections tailored for the paper industry, offering both 1½" and 1" flush process connection threads at the front. This versatility makes it suitable for various processes within the paper industry.

Known for its user-friendliness and high accuracy, the SITRANS P300 digital pressure transmitter provides flexible parameterization through control keys, HART communication, PROFIBUS PA, or FOUNDATION Fieldbus interface. This extensive functionality allows for precise adjustment to meet specific plant requirements, despite the numerous setting options.

Moreover, despite its comprehensive features, the transmitter is designed for simple operation. Additionally, pressure transmitters with "Intrinsic safety" and "Flameproof" protection can be installed in hazardous areas (zone 1) or in zone 0, and they come with an EC type-examination certificate, complying with harmonized European standards (ATEX).



More details

SIEMENS SITRANS LH300 Transmitter for Hydrostatic Level

SITRANS LH300 pressure transmitter, which is designed for hydrostatic level measurement. The protective caps made of PPE, stainless steel, or ETFE make it suitable for different environments, including drinking water systems. The transmitter converts pressure into a standard 4-20 mA signal and is suitable for various measuring ranges. Additionally, it's available with explosion protection as an option, and accessories like a cable box and anchoring clamp are available for simple installation.


More details

SIEMENS SITRANS LH100 TRANSMITTER FOR HYDROSTATIC LEVEL

SITRANS LH100 pressure transmitter. This device is designed to convert level-proportional hydrostatic pressure into a standard 4-20 mA signal and is suitable for measuring levels in basins, containers, canals, and dams. Like the LH300, it also has a stainless steel housing and a piezoresistive sensor with a ceramic membrane. Additionally, it's available for a wide range of measuring ranges and can be equipped with explosion protection if needed. Accessories such as a cable box and anchoring clamp are also available for easy installation.

More details
