Large Display Indicators

Precision Digital manufactures large display indicators and controllers which feature large, bright displays that can be seen from considerable distance, up to 100 feet away! They can be easily mounted to walls, pipes, and other surfaces in your facility, inside or outdoors. Large display meters feature rugged enclosures and are available for a wide range of applications, including level, flow rate and total, temperature, pressure, and weight.

Featured Videoenlightened
Introduction to the Helios Dual-Line Large Display and Controller

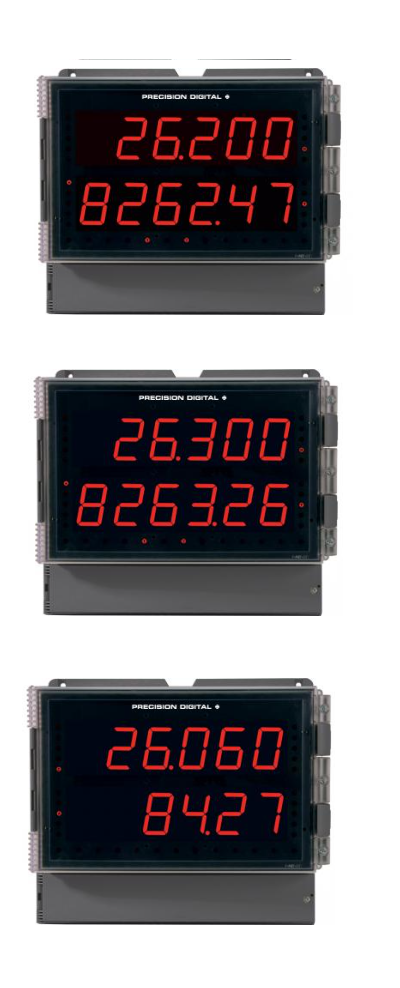

PD2-6000 Helios Process Meter

Go with the Helios PD2-6000 when you need a large display meter to display the 4-20 ma output from any transmitter you might have. The PD2-6000 can display that output in six full digits and will also provide the 24 VDC to power the transmitter. The PD2-6000's NEMA 4X enclosure, super bright, 1.8" (46 mm) high LEDs, and wide operating temperature range make it perfect for outdoor applications. The PD2-6000 can also be equipped with a 4-20 mA output as well as four relays that can be used for alarming or control applications, including pump alternation control.

More details

PD2-6100 Helios Strain Gauge, Load Cell & mV Meter

Go with the Helios PD2-6100 when you have a weighing application where you need to read the display from a distance, or outside in the bright sunlight in temperatures between -40 to 150°F. The PD2-6100 tare feature can be used to remove the weight of the container from the weight calculation. You can even re-transmit the weight signal with the PD2-6100's optional 4-20 mA output.

More details

PD2-6080 Helios Modbus Scanner with Dual Analog Inputs

Go with the Helios PD2-6080 when you have multiple, (up to 16), Modbus registers you want to display on a single large display meter. The PD2-6080 can also accept two 4-20 mA signals. The PD2-6080 can be programmed as a Modbus RTU Master, Slave or Snooper allowing it to work in just about any Modbus application. Typically, the upper line displays the PV and the lower line displays the tag.

More details

PD2-6001 Helios Feet & Inches Level Meter

Go with the Helios PD2-6001 when you prefer to read level in feet and inches instead of the more common decimal format. This unique display will read up to 99 feet, 11 & 15/16s inches on the upper line. The lower line can display a tag or volume, even from non-linear tanks such as round horizontal ones. The PD2-6001 makes a great outdoor tank side indicator because its display is bright enough to read in direct sunlight and it will operate from -40 to 150°F. The PD2-6001 can also be equipped with a 4-20 mA output as well as four relays that can be used for alarming or controlling applications, including pump alternation control.



More details

PD2-6060 Helios Dual Analog Input Process Meter

Go with the Helios PD2-6060 when you need a large display meter to display two 4-20 mA inputs on one meter. Both of these inputs can be displayed on six full digits and each transmitter is provided with its own 24 VDC transmitter power supply. The PD2-6060 can also perform a variety of math functions on those two inputs, such as computing the difference between them or summing them together.

More details

PD2-6081 Helios Feet & Inches Modbus Scanner with Dual Analog Inputs

Go with the Helios PD2-6081 when you have a level application involving Modbus signals and you prefer to display in feet and inches instead of the more common decimal format. The PD2-6081 can display up to 16 modbus registers so a typical application might be 16 tank levels, 8 tank levels and 8 interface levels, or 5 tank levels, 5 interface levels and 5 temperatures. The PD2-6081 makes a great outdoor tank side indicator because its display is bright enough to read in direct sunlight and it will operate from -40 to 150°F.

More details

PD2-6200 Helios Analog Input Flow Rate/Totalizer

Go with the Helios PD2-6200 when you want to display both flow rate and total at the same time from a 4-20 mA output flowmeter. The PD2-6200 can display both flow rate and total in six full digits and can also be configured to display non-resettable grand total. The PD2-6200 can even display open channel flow using its programmable exponent function. The PD2-6200's NEMA 4X enclosure, super bright LEDs, and wide operating temperature range make it perfect for outdoor applications.

More details

PD2-6210 Helios Analog Input Batch Controller

Go with the Helios PD2-6210 when you need to do batch controlling using a 4-20 mA output flowmeter. The PD2-6210's huge display means operators don't have to be close up to the instrument to monitor the status of the batching application. And its NEMA 4X enclosure allows the PD2-6210 to be mounted in wet, dusty, and dirty areas. The PD2-6210 can handle single and multi-stage batching applications.

More details

PD2-6262 Helios Dual Analog Input Flow Rate/Totalizer

Go with the Helios PD2-6262 when you want to display two 4-20 mA flowmeter inputs on one meter. Both of these inputs can be displayed on six full digits and each flowmeter is provided with its own 24 VDC power supply. The PD2-6262 can also perform a variety of math functions on those two inputs, such as computing the difference between them or summing them together. One application for the PD6262 is determining fuel consumption by computing the difference between two flowmeter inputs.

More details

PD2-6300 Helios Pulse Input Flow Rate/Totalizer

Go with the Helios PD2-6300 when you want to display both flow rate and total at the same time from a pulse output flowmeter. The PD2-6300 can display both flow rate and total in six full digits and can also be configured to display non-resettable grand total. The PD2-6300's NEMA 4X enclosure, super bright LEDs, and wide operating temperature range make it perfect for outdoor applications.

More details

PD2-6310 Helios Pulse Input Batch Controller

Go with the Helios PD2-6310 when you need to do batch controlling using a pulse output flowmeter. The PD2-6310's huge display means operators don't have to be close up to the instrument to monitor the status of the batching application. And its NEMA 4X enclosure allows the PD2-6310 to be mounted in wet, dusty, and dirty areas. The PD2-6310 can handle single and multi-stage batching applications.

More details

PD2-6363 Helios Dual Pulse Input Flow Rate/Totalizer

Go with the Helios PD2-6363 when you want to display two pulse flowmeter inputs on one meter you can see from a distance. Both of these inputs can be displayed on six full digits and each flowmeter is provided with its own DC power supply. The PD2-6363 can also perform a variety of math functions on those two inputs, such as computing the difference between them or summing them together. One application for the PD6363 is determining fuel consumption by computing the difference between two flowmeter inputs.



More details

PD2-6400 Helios High Voltage & Current Meter

Go with the Helios PD2-6400 when you want to display voltage and current on one large display meter you can see from a distance. The PD2-6400 can even compute and display apparent power by multiplying the two inputs together.

More details

PD2-7000 Helios Temperature Meter

Go with the Helios PD2-7000 when you want to display temperature on a large display meter you can see from a distance. The PD2-7000 can accept a variety of thermocouples and RTDs and displays temperature on a six digit display. The PD2-7000's NEMA 4X enclosure, super bright LEDs, and wide operating temperature range make it perfect for outdoor applications.

More details

PD4-6600 Loop Leader+ Large Display Loop-Powered Process Meter

The Loop Leader+ loop-powered large display meters can be installed virtually anywhere to provide convenient and informative display of any 4-20 mA signal. One of the most convenient features of these instruments is their large, dual line display. The 2.8" 5-digit top display is used to display the process variable while the 1.5" 8-character alphanumeric bottom display can be used to display the units of measure or a tag. Feet and inches models display level in feet and inches on the top display while the 8-digit alphanumeric bottom line may be used to display a tag or custom message.

Further enhancing the display on these instruments is a 20-segment bargraph that also includes a numeric value of the percentage the bargraph represents. Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters.

The PD4 is available in two configurations: Display only and with two solid-state relays and 4-20 mA analog output. All models come equipped with two open collector outputs and remote contacts. The open collector outputs are useful for alarm indication. The remote contacts can be used to remotely operate the four programming buttons, to acknowledge the relays, to start/stop a timer/stopwatch, and more. The relays can be programmed for alarm indication, on/off control, or pump alternation.

Finally, there are intrinsically safe versions of these instruments that can be installed in hazardous areas




More details

PD4-6600 Loop Leader+ Large Display Loop-Powered Intrinsically Safe Process Meter

The Loop Leader+ loop-powered large display meters can be installed virtually anywhere to provide convenient and informative display of any 4-20 mA signal. One of the most convenient features of these instruments is their large, dual line display. The 2.8" 5-digit top display is used to display the process variable while the 1.5" 8-character alphanumeric bottom display can be used to display the units of measure or a tag. Feet and inches models display level in feet and inches on the top display while the 8-digit alphanumeric bottom line may be used to display a tag or custom message.

Further enhancing the display on these instruments is a 20-segment bargraph that also includes a numeric value of the percentage the bargraph represents. Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters.

The PD4 is available in two configurations: Display only and with two solid-state relays and 4-20 mA analog output. All models come equipped with two open collector outputs and remote contacts. The open collector outputs are useful for alarm indication. The remote contacts can be used to remotely operate the four programming buttons, to acknowledge the relays, to start/stop a timer/stopwatch, and more. The relays can be programmed for alarm indication, on/off control, or pump alternation.

Finally, there are intrinsically safe versions of these instruments that can be installed in hazardous areas.




More details

PD4-6620 Loop Leader+ Large Display Loop-Powered Flow Rate/Totalizer

The Loop Leader+ loop-powered large display flow rate/totalizers can be installed virtually anywhere to provide convenient and informative display of any 4-20 mA signal. One of the most convenient features of these instruments is their large, dual-line display which is typically used to display flow rate on the 2.8" 5-character alphanumeric top display and flow total, flow grand total, or a tag on the 1.5" 8-character alphanumeric bottom display. Both display lines use 14-segment, alphanumeric characters that provide much clearer indication of tags, units, or alarm messages than 7-segment characters do.

Further enhancing the display on these instruments is a 20-segment bargraph that also includes a numeric value of the percentage the bargraph represents. Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters.

The PD4 is available in two configurations: Display only and with two solid-state relays and 4-20 mA analog output. All models come equipped with two open collector outputs and remote contacts. The open collector outputs are useful for alarm indication or pulse output. The remote contacts can be used to remotely operate the four programming buttons, to reset the total, to start/stop a timer/stopwatch, and more. The relays can be programmed for alarm indication, sample, timer, batch control, or stopwatch.

Finally, the PD4-6628 is an intrinsically safe version that can be installed in hazardous areas.




More details

PD4-6620 Loop Leader+ Large Display Loop-Powered Intrinsically Safe Flow Rate/Totalizer

The Loop Leader+ loop-powered large display flow rate/totalizers can be installed virtually anywhere to provide convenient and informative display of any 4-20 mA signal. One of the most convenient features of these instruments is their large, dual-line display which is typically used to display flow rate on the 2.8" 5-character alphanumeric top display and flow total, flow grand total, or a tag on the 1.5" 8-character alphanumeric bottom display. Both display lines use 14-segment, alphanumeric characters that provide much clearer indication of tags, units, or alarm messages than 7-segment characters do.

Further enhancing the display on these instruments is a 20-segment bargraph that also includes a numeric value of the percentage the bargraph represents. Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters.

The PD4 is available in two configurations: Display only and with two solid-state relays and 4-20 mA analog output. All models come equipped with two open collector outputs and remote contacts. The open collector outputs are useful for alarm indication or pulse output. The remote contacts can be used to remotely operate the four programming buttons, to reset the total, to start/stop a timer/stopwatch, and more. The relays can be programmed for alarm indication, sample, timer, batch control, or stopwatch.

Finally, the PD4-6628 is an intrinsically safe version that can be installed in hazardous areas.




More details
