Noshok Pressure Transmitters

NOSHOK is a market leader in industrial pressure transducers and transmitters that are highly dependable and consistent. There are many different measuring ranges, output options, process connections, and electrical connections to choose from. Application like  HVAC, hydraulics and pneumatics, injection molding machines, railroad equipment, stamping and forming presses, power generation, and aerospace equipment are just a few of the uses for NOSHOK Industrial transducers and transmitters.

Why choose NOSHOK Pressure Transmitters? Click here

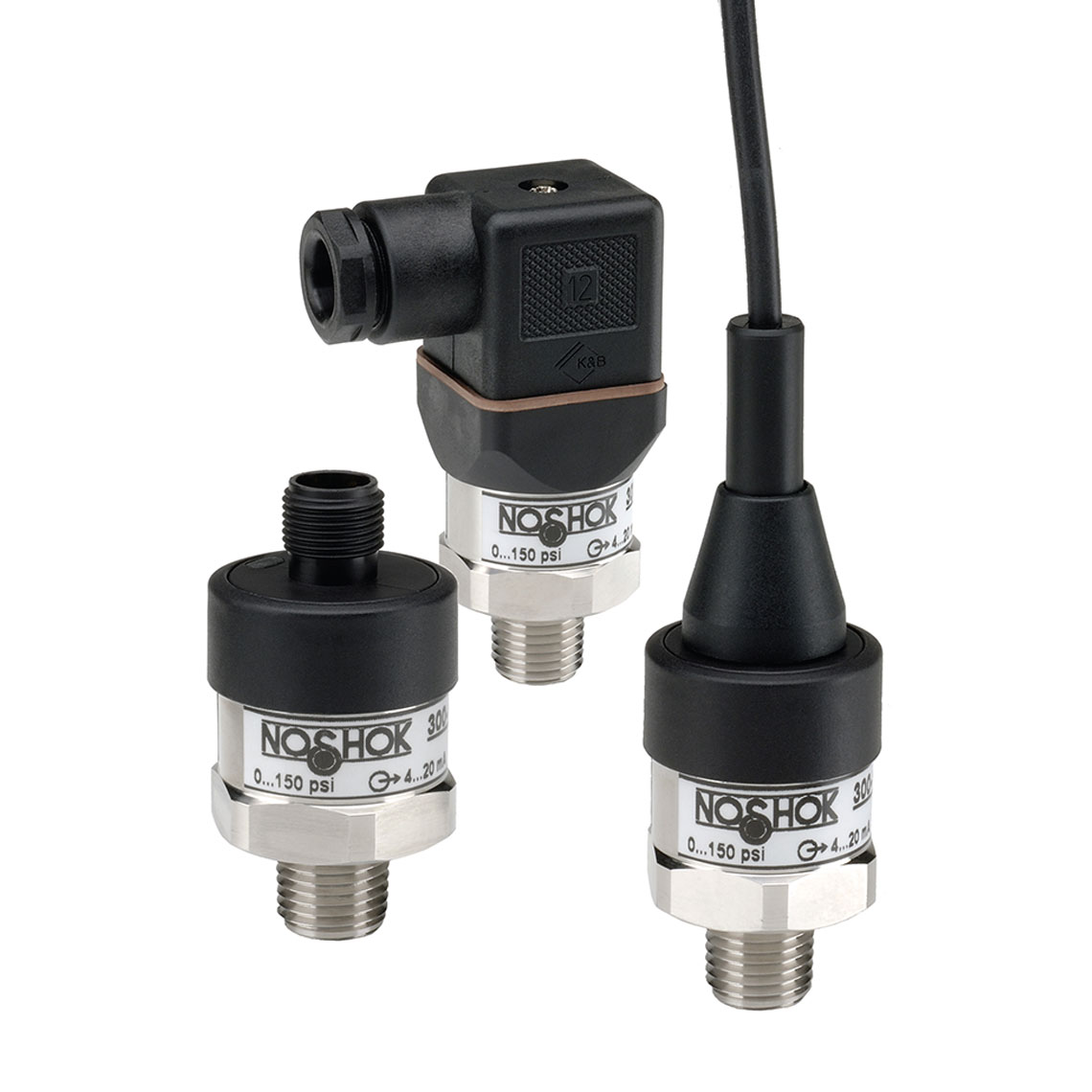

NOSHOK 100 Series Current Output Pressure Transmitters are designed to provide a previously unequalled level of performance, utilizing diffused semiconductor and sputtered thin film strain gage technology. 100 Series transmitters are highly repeatable, shock resistant and are extremely stable over long periods of time. CE compliance which includes substantial levels of RFI, EMI and ESD noise protection combined with reverse polarity and over-voltage protection hardens the product so it performs well in the most demanding applications.
  • Vacuum and compound ranges through 0 psig to 15,000 psig
  • Current output
  • 316 and 17-4PH Stainless Steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD
  • Ideal for applications including HVAC, hydraulics & pneumatics, injection molding machines, railroad equipment and stamping & forming presses

More details

NOSHOK 200 Series Voltage Output Pressure Transducers are designed to provide a previously unequalled level of performance, utilizing diffused semiconductor and sputtered thin film strain gage technology. 200 Series transducers are highly repeatable, shock resistant and are extremely stable over long periods of time. CE compliance which includes substantial levels of RFI, EMI and ESD noise protection combined with reverse polarity and over-voltage protection hardens the product so it performs well in the most demanding applications.
  • Ranges from vacuum to 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
  • Voltage output
  • 316 and 17-4PH Stainless Steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD
  • Ideal for applications including HVAC, hydraulics & pneumatics, injection molding machines, railroad equipment and stamping & forming presses

More details

NOSHOK Series 615 & 616 Series Pressure Transducers are designed for heavy duty applications requiring high accuracy and durability. Utilizing diffused semiconductor or sputtered Thin Film technology, these transducers are stable, accurate, shock resistant, and extremely durable. The durability is coupled with the mechanical integrity of the case, process connection, and wetted parts constructed of corrosion resistant stainless steel. Available in a wide variety of electrical and process configurations, the Series 615 Pressure Transducers are the choice for heavy duty applications.
  • Vacuum ranges through 0 psig to 145,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
  • Current and voltage outputs available
  • 316 and 17-4PH Stainless Steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD
  • Ideal for applications including construction, hydraulics & pneumatics, laboratory & test equipment, power generation, stamping & forming presses and transportation

More details

NOSHOK Series 640 Transducers have been designed for industrial and laboratory applications requiring high accuracy and repeatability with excellent compensation for the effects of temperature. The temperature compensation system practically eliminates temperature induced errors from 50 °F to 104 °F. Series 640 Transducers utilize thin film and diffused semiconductor technology dependent on pressure range. These sensors are highly accurate, shock resistant and extremely stable over long periods of time. Standard output is a digital output with an RS232-C serial interface. Other outputs and electrical connections are available to meet the demands of almost any precision application.
  • Vacuum ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
  • Standard 4 mA to 20 mA output
  • 316 and 17-4PH Stainless Steel wetted parts
  • CE compliant to suppress RFI, EMI and ESD
  • Ideal for applications including aerospace equipment, computer interface & data logging, laboratory & test equipment and precision measurement

More details

NOSHOK Series 660 pressure transducers combine high performance with small size to produce an exceptional product. These transducers are designed with high overpressure capability to provide reliability and long life in hydraulic and pneumatic applications containing process pulsations and high vibration. The sensor utilizes sputtered thin film strain gage technology that provides stainless steel media compatibility and long term measurement stability. All of this in a small package that is more easily designed into applications than conventional transducers. This package is all metal and welded for reliable and trouble-free performance in high shock and vibration conditions often found in off road applications. Variations in pressure connections, outputs and electrical connections are available and custom configurations are possible for volume applications.
  • Ranges from 0 psig to 200 through 0 psig to 15,000 psig
  • Current & voltage outputs available
  • Stainless Steel wetted parts
  • 1.0 mm standard orifice size for improved performance in dynamic applications
  • CE compliant to suppress RFI, EMI and ESD
  • Ideal for applications including hydraulics & pneumatics, mobile hydraulics, power generation, pumps & compressors and refrigeration controls

More details

The NOSHOK Series 621 and 622 pressure transmitters combine the reliability and long life of diffused semiconductor and sputtered thin film strain gage sensors with safe electronics for outstanding performance and value. These transmitters were designed for applications that require pressure measurement in hazardous environments. All wetted parts are made of stainless steel and Elgiloy welded with no internal O-rings, gaskets or seals. These transmitters are available with a wide variety of pressure ranges to suit most applications. All units undergo extensive testing during the manufacturing process to ensure that the highest performance is achieved in the demanding environments found in today’s applications. The transmitters are available with a standard threaded connection as well as a flush diaphragm configuration and are Factory Mutual approved. All models incorporate significant levels of RFI, EMI and ESD protection.
  • Vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 100 psia
  • Current and voltage outputs available
  • 316 stainless Steel and Elgiloy wetted parts
  • Factory Mutual and Canadian Standards Association approved
  • CE compliant to suppress RFI, EMI and ESD
  • NACE MR0175/ISO 15156 compliant
  • NSI/ISA-12.27.01 approved single seal



NOSHOK 621 and 622 Series transmitters are Factory Mutual and Canadian Standards Association approved for use in hazardous location applications as follows:

  • Explosion-proof with entity approved for: Class I, Division 1, Groups A, B, C and D.
  • Dust Ignition-proof with entity approval for class II/III, Division 1, Groups E, F and G.
  • Maximum electrical ratings 30V, 20 mA.
  • CE compliant with pressure equipment directive 2014/68/EU.
  • ANSI/ISA-12.27.01, Approved single seal.
  • Ideal for applications including chemical processing, gas pressure measurement, oil field & offshore, mining and well head measurement



More details

The NOSHOK Series 623 and 624 pressure transmitters combine the reliability and long life of diffused semiconductor and sputtered thin film strain gage sensors with safe electronics for outstanding performance and value. These transmitters were designed for applications that require pressure measurement in hazardous environments. The pressure chamber is welded with no internal O-rings, gaskets or seals. These transmitters are available with a wide variety of pressure ranges to suit most applications. All units undergo extensive testing during the manufacturing process to ensure that the highest performance is achieved in the demanding environments found in today’s applications. The transmitters are available with a standard threaded connection as well as a flush diaphragm configuration and are Factory Mutual and Canadian Standards Association approved. All models incorporate significant levels of RFI, EMI and ESD protection.
  • Vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 100 psia
  • Current and voltage outputs available
  • 316 Stainless Steel and Elgiloy wetted parts
  • Factory Mutual and Canadian Standards Association approved
  • CE compliant to suppress RFI, EMI and ESD
  • NACE MR0175/ISO 15156 compliant
  • NSI/ISA-12.27.01 approved single seal



NOSHOK 623 and 624 Series transmitters are Factory Mutual and Canadian Standards Association approved for use in hazardous location applications as follows:

  • Non-Incendive for:
    • Class I, Division 2, Groups A, B, C and D.I.P.
    • Class II, Division 1, Groups E, F and G Maximum ratings 30 Vdc, 20 mA.
  • CE compliant with pressure equipment directive 2014/68/EU.
  • ANSI/ISA-12.27.01, Approved single seal.
  • Ideal for applications including chemical processing, gas pressure measurement, oil field & offshore, mining and well head measurement



More details

NOSHOK Series 625 and 626 pressure transmitters combine the reliability and long life of diffused semiconductor and sputtered thin film strain gage sensors with safe electronics for outstanding performance and value. These transmitters were designed for applications that require pressure measurement in hazardous environments. All wetted parts are made of stainless steel (Hastelloy® C4 optional on front flush model), welded with no internal O-rings, gaskets or seals. These transmitters are available with a wide variety of pressure connections, ranges and electrical connections to suit most applications. All units undergo extensive testing during the manufacturing process to ensure that the highest performance is achieved in the demanding environments found in today’s applications. The transmitters are available with standard threaded connections as well as flush diaphragm configurations and are Factory Mutual and Canadian Standards Association approved. All models incorporate significant levels of RFI, EMI and ESD protection.

  • Low pressure ranges for vapor recovery applications, vacuum and compound ranges through 0 psig to 15,000 psig; absolute ranges from 0 psia to 15 psia through 0 psia to 300 psia
  • Current output
  • 316 and 14-4PH Stainless Steel wetted parts
  • Factory Mutual and Canadian Standards Association approved
  • CE compliant to suppress RFI, EMI and ESD
  • NSI/ISA-12.27.01 approved single seal



NOSHOK 625 and 626 Series transmitters are Factory Mutual and Canadian Standards Association approved for use in hazardous location applications as follows:

  • Intrinsically Safe, entity approval for Class I, II and III, Division 1, Groups A, B, C, D, E, F and G; and Class I, Zone 0 Aex ia IIC
  • Dust Ignition-proof for Class II and III, Division 2, Groups F and G
  • Non-incendive for Class I, Division 2, Groups A, B, C and D.
  • CE compliant with pressure equipment directive 2014/68/EU.
  • ANSI/ISA-12.27.01, Approved single seal.
  • Ideal for applications including chemical processing, gas pressure measurement, oil field & offshore, mining, vapory recovery systems, well head measurement



More details

NOSHOK 628 Series transmitters are Canadian Standards Association approved for use in hazardous location applications. This is Ideal for applications including acidizing, choke & kill manifold, fracturing & cementing; mud logging & mud pumps, oil field & offshore and well head measurement.

• Ranges from 0 psig to 5,000 psig through 0 psig to 20,000 psig
• Current output
• Inconel X-750 wetted parts
• Canadian Standards Association approved
• Every sensor comes with a Certificate of Calibration


NOSHOK 628 Series transmitters are approved for use in hazardous location applications as follows:

  • Intrinsically Safe
    • Class I, DIV 1, Groups A,B,C,D, -40°C
    • Class II, DIV 1, Groups E,F,G,
    • Class III,
    • Class I, Zone 0 AEx/Ex ia IIC T4.
  • Non-Incendive
  • Class I, DIV 2, Groups A,B,C,D, -40°C
  • Class II, DIV 2, Groups F,G,
  • Class III,
  • Class I, Zone 2 AEx/Ex ic IIC T4



More details

The NOSHOK series 11 high performance sanitary pressure transmitter is designed for heavy duty sanitary applications where high accuracy and durability are required. Using diffused semiconductor or sputtered thin film sensor technology these transducers are stable, accurate, shock resistant and extremely durable. The housing is constructed of 316SS and welded to the process connection for greater strength and integrity.Tri-Clamp connection, with its integral cooling extension, is 316L stainless steel and wetted parts are electro-polished to Ra25 microinch or Sanitary Transmitters meet 3A requirements for the food and beverage, dairy, pharmaceutical and biotechnology industries in addition to ASME BPE-2009 and CE compliant to EMC norm EN61326: 1997/A1:1998 RFI, EMI, ESD protection.
  • Ranges from vacuum through 0 psig to 400 psig
  • Current and voltage outputs available
  • 316 Stainless Steel wetted parts
  • Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
  • Meets 3A requirements for the food and beverage, dairy, pharmaceutical and biotechnology industries
  • CE compliant to suppress RFI, EMI and ESD
  • Ideal for applications including food & beverage processing, pasteurization systems, pharmaceutical and medical



More details

The NOSHOK 25 Series sanitary pressure transmitter is built for heavy-duty applications in the food and beverage sector that demand high accuracy, shock resistance, and durability. Pressure and temperature sensors are located directly below the diaphragm in the transmitter, reducing fill fluid, allowing for a smaller diaphragm, and reducing the risk of damage. This minimizes temperature and position inaccuracy by providing dynamic temperature correction at the site of measurement. The diaphragms are laser-welded and leak-tested with helium.

The 25 Series transmitter has an on-board, 360-degree rotatable display that makes programming simple. Range adjustment does not require a reference pressure, and linearization can be done for a variety of tank designs. The transmitter is 3A authorized, may be cleaned in place (CIP) or steamed in place (SIP), and comes with a variety of options.


  • Easy programming and range adjustment without test pressure via on-board display
  • Accuracy 0.2% of adjusted span
  • 4:1 turn down
  • Active temperature compensation
  • Ranges from -160 inH2O vac to 1,160 psig
  • Hart® protocol output available
  • All Stainless Steel housing and wetted parts
  • Strong flush diaphragm with minimal fill volume
  • Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
  • Meets 3A requirements
  • Ideal for applications including food & dairy, chemical processing and pharmaceutical

More details

NOSHOK 30 Series intelligent sanitary transmitters are solid-state weight and level transmitters utilizing a piezoresistive silicone sensor with an extremely high burst pressure. The sensor component is mounted in a Stainless Steel foot. Inside the foot a temperature sensor is additionally mounted to give active temperature compensation during operationto minimize error caused by temperature effect. A compact, robust Stainless Steel flush diaphragm design also minimizes the fill liquid content and greatly reduced the potential damage. Diaphrams are laser welded and helium leak tested. A little amount of oil fills the chamber encompassing the sensor and create pressure from the flush mounted diaphragm to the sensor. Pressure on the sensor element generates a very little deflection of the silicon substrate and bridge network. Due to strain in the silicon resistors, it alters the bridge resistance proportional to the pressure applied. The transmitter electronics detects this changed in bridge resistance and convert it into 4-20 mA signal. The amplifier system inside the transmitter was based on a single Integrated circuit, which generate a perfect linearity in the 4-20 mA output. The flush diaphragm technology ensures reliable stability over a long-term. The All Stainless Steel pressure transmitters design do not have oil filling and are based on a ceramic pressure cell, with extremely high burst pressure limit.

Ideal for applications including tank level measurement, food & beverage, dairy, breweries, chemical processing and pharmaceutical.

  • 300 Series: ranges from 40 inH2O to 60 psig
    301 Series: adjustable ranges from 16 inH2O to 1,450 psig via Hart®
    302 Series: adjustable ranges from 40 inH2O to 1,160 psig
    304 Series: adjustable ranges from 16 inH2O to 1,450 psig
  • Hart® signal output available on 301 & 304 Series Transmitters
  • 316 Stainless Steel wetted parts
  • Strong flush diaphragm with minimal fill volume
  • Can be cleaned-in-place (CIP) or steamed-in-place (SIP)
  • Meets 3A requirements

  • 300/301 Series
    • Cable connection only (no housing)
    • Active temperature compensation
    • Fixed range (300 Series)
    • Range adjustment with Hart® (301 Series) 302 Series
    • All polished Stainless Steel housing
    • Active temperature compensation
    • Zero/span adjustable
    • 10:1 Turn down (301 Series)
  • 302 Series
    • All polished Stainless Steel housing
    • Active temperature compensation
    • Zero/span adjustable
    • 4:1 Turn down
  • 304 Series
    • All polished Stainless Steel housing
    • Active temperature compensation
    • Accuracy 0.1% of adjusted span
    • 10:1 Turn down
    • Easy programming and range adjustment without test pressure via on-board display
    • Hart® protocol available

More details

The Noshok 800 Series Pressure Transmitter/Switch is used for the switching of circuits as a function of the measured pressure. In addition, the pressure value can be output to appropriate read-out units as a standardized analog signal. The switching conditions can be programmed directly at the pressure transmitter/switch (switch and reset points,etc.). Via the different display elements, switching statuses and pressure values can be read.



More details
