For High Liquid Level, Oil and Sludge layer detection

LCJ1-SK4 EU Declaration of Conformity

UK Declaration of Conformity

IECEx Certificate

OMS-1 alarm device is specially designed for oil separators. It indicates when it is time to empty the oil separator, which prevents harmful hydrocarbon emissions from being released into to the sewer system.

OMS-1 is an alarm system designed to monitor the oil layer thickness in an oil separator. The system comprises the OMS-1 control unit, OMS sensor, and a cable joint.

The OMS sensor is installed inside the light liquid storage chamber and triggers an alarm when the oil layer reaches a preset level. Typically, the sensor is immersed in water, and its operation is based on measuring electrical conductivity—water conducts electricity much better than oil.

Since oil separators are considered potentially explosive (Ex) areas, the OMS-1 sensor can be installed in zone 0, 1, or 2, where flammable gases may be present. However, the control unit must be installed in a safe, non-hazardous area.

Benefits

24/7 monitoring

Continuous oil layer detection ensures timely maintenance and helps avoid environmental damage.

Environmental protection

Prevents oil overflow and leakage, safeguarding natural resources and supporting sustainability goals.

Certified for safety and compliance

OMS-1 oil separator alarm is fully compliant with EN 858-1 & 2, ATEX Directive 2014/34/EU, IECEx, and UKEX — safe for use in explosive atmospheres.

Quick installation & remote monitoring

Fast setup with remote access capabilities for efficient system management and reduced manual checks.

Robust & reliable performance

Engineered to meet demanding conditions, OMS-1 features a durable design that complies with PPG3 and industry standards.

Optimised for small class II separators

OMS-1 oil separator alarm is ideal for compact systems.

More details

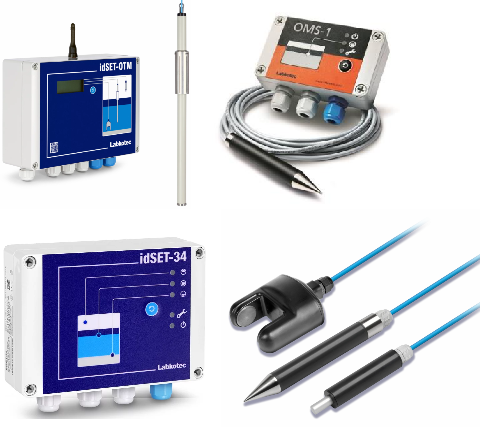

idSET-OTM Oil Separator Alarm System (Controller and Sensor)

idSET-OTM is a sophisticated and adaptable measurement device tailored for real-time tracking of oil layer thickness in oil separators. It is compatible with various sensors, including the idSET-OTM oil sensor, idOil-LIQ high-level sensor, and idSET-SLU sludge sensor, offering a comprehensive monitoring solution for separator systems.

Datasheet

Installation and User Guide

idSET-OTM is a measuring device for continuous measurement of the oil layer thickness in the oil separator.

The new OTM feature with LabkoNet optimize emptying and maintenance routines.

idSET-OTM is a LabkoNet Connected device which means it’s automatically connected to LabkoNet when commissioned.

Most common application areas:

Petrol stations
Garages
Airports
Motorways
Parking lots
Oil terminals

Benefits

24/7 Environmental Monitoring

Continuously tracks oil layer thickness to prevent overflow and protect soil and groundwater from contamination.

Reduce collection costs and emissions

Integrated with LabkoNet cloud service, idSET-OTM uses real-time data to optimize emptying schedules. This reduces unnecessary service visits, lowers emissions, and cuts operational costs.

Certified for safety and compliance

idSET-OTM oil separator alarm system is fully compliant with EN 858-1 and -2, ATEX Directive 2014/34/EU, and IECEx—safe for use in explosive atmospheres.

Advanced monitoring capabilities:

Oil layer thickness: Enables predictive maintenance and scheduled emptying.
Liquid level rise: Alerts for potential outlet blockages.
Sludge layer detection: Notifies when silt accumulation reaches critical levels.
Fluid level drop: Detects unexpected liquid loss for fast response.

Real-time alerts and data sharing

Audible alarms, display messages, relay activation, and analog signals provide full visibility. All alarms and measurements are sent to the LabkoNet cloud service, enabling remote access and easy data sharing.

Automatic LabkoNet connection

idSET-OTM is LabkoNet CONNECTED—automatically linked via a secure data connection for seamless remote monitoring and reporting.

More details

idOil-30 Oil Separator Alarm (Controller) and idOil Sensors

The idOil-30 oil separator alarm system is designed to monitor liquid levels in oil separators. It allows connection of up to three idOil sensors of any type without polarity concerns, with automatic recognition through a simple one-touch commissioning process.

Datasheet

The system offers easy setup and flexible configuration via WLAN, along with alarm logging capabilities. It is also available with a 3G modem and can operate on 12 V DC power.

High liquid level alarm, when the liquid level in the oil separator rises excessively e.g. in an outlet blockage situation.
Oil layer thickness alarm, when the oil separator’s full capacity for oil or petrol has been reached.
Sludge layer thickness alarm, when the sludge layer in the bottom of the separator has reached its maximum level.
Separator leakage alarm, when the liquid level drops unexpectedly.

The complete idOil-30 package includes:

The idOil-30 control unit
Selected idOil sensors
Suitable cable connectors
Mounting kit LMS-SAS2 for the control unit
Mounting kit LMS-SAS5 for the sensors

Benefits

Multi supply voltage
Selectable sensor combination with up to three sensors
Polarity-free sensor connection
Automatic sensor and sensor type detection
Quick one touch commissioning
Display for system status and alarm information
Two fully configurable potential free relay outputs
Alarm log
Service and maintenance diary
WLAN connection locally between control unit and laptop/tablet/smartphone to access the built in browser user interface for settings and configuration

More details

idSET-34 Oil Separator Alarm (Controller) and idOil Sensors

idSET-34 is an alarm system designed for monitoring liquid levels, especially in oil and sand separators. It features an easy-to-use control unit with four relays: one for each sensor and one for fault detection.

Up to three different types of idOil sensors can be connected without polarity concerns, thanks to their automatic recognition through a one-touch commissioning process.

Datasheet

Installation and User Guide

UK Declaration of Conformity

More details

idOil-D30 Oil Separator Alarm (Controller) and idOil Sensors

The idOil-D30 is a versatile monitoring unit that can be mounted inside an electrical cabinet on DIN rails. It supports the connection of up to three idOil sensors of any type without the need for polarity connection, with automatic sensor recognition via a one-touch commissioning process.

Datasheet

The idOil-D30 is a control unit designed for oil separator alarm systems. It can be connected to up to three any type of idOil sensors. Using the idOil-D30 with compatible Labkotec sensors, the following alarms can be monitored:

High liquid level alarm: triggered when the liquid level in the oil separator rises excessively, such as during outlet blockage.
Oil layer thickness alarm: activated when the oil or petrol reaches the separator's maximum capacity.
Sludge layer thickness alarm: when the sludge layer at the bottom of the separator reaches its maximum level.
Separator leakage alarm: triggered if the liquid level drops unexpectedly, indicating potential leaks.

The system provides straightforward setup and flexible local configuration through WLAN, along with alarm logging features.

The complete idOil-D30 package includes:

The idOil-D30 control unit
Selected idOil sensors
Appropriate cable connectors
Mounting kit LMS-SAS5 for sensors

Benefits

Multi supply voltage
Selectable sensor combination with up to three sensors
Polarity-free sensor connection
Automatic sensor and sensor type detection
Quick one touch commissioning
Display for system status and alarm information
Two fully configurable potential free relay outputs
Alarm log
Service and maintenance diary
WLAN connection locally between control unit and laptop/tablet/smartphone to access the built in browser user interface for settings and configuration

More details

idOil-Solar Oil Separator Alarm (Controller) and idOil Sensors

The idOil Solar is a solar-powered alarm and communication unit designed for monitoring liquid hydrocarbon, sludge, or high levels in oil and sand separators, especially in locations without mains power. It can be equipped with a beacon light and/or a 3G modem for remote communication.

Datasheet

Installation and User Guide

The device operates primarily in a low-power standby mode, awakening at scheduled intervals to perform sensor measurements and, if equipped with a 3G modem, to listen for commands and report data simultaneously. When an alarm condition occurs, idOil Solar can activate a flashing beacon, send SMS messages to pre-set phone numbers, or both. All alarms are also visible locally on the control unit during brief wake-up periods. The control unit shares features with the idOil-30 Battery control unit.

The alarms monitored by the system include:

High liquid level alarm: Triggered when the liquid level in the oil separator rises excessively, such as during an outlet blockage.
Oil layer thickness alarm: Activated when the oil or petrol reaches the separator’s maximum capacity.
Sludge layer thickness alarm: Occurs when the sludge layer at the bottom of the separator reaches its maximum level.
Separator leakage alarm: Initiated when the liquid level drops unexpectedly, indicating potential leaks or spills.

The complete system package includes:

Solar panel housing
Battery
Charge controller
Suitable idOil-30 Battery control unit version
Selected idOil sensors
Appropriate cable connectors
LMS-SAS5 mounting kit for sensors

Benefits

Selectable sensor combination with up to three sensors
Polarity-free sensor connection
Automatic sensor and sensor type detection
Quick one touch commissioning
Display for system status and alarm information in control unit inside
Two fully configurable potential free relay outputs
Alarm log
Service and maintenance diary
WLAN connection locally between control unit and laptop/tablet/smartphone to access the built in browser user interface for settings and configuration

More details

idOil-30 (3G) Oil Separator Alarm (Controller) and idOil Sensors

The idOil-30 3G alarm system comes equipped with a 3G data transfer module and antenna. It supports connection of up to three any-type idOil sensors without polarity concerns, which are automatically recognized through a one-touch commissioning process.

Datasheet

Configuration Instructions - SMS

The idOil-30 3G is a control unit with an integrated 3G communication module designed for oil separator alarm systems. It can connect to up to three any-type idOil sensors. Using the idOil-30 3G with compatible Labkotec sensors, the system can monitor and alert for the following conditions:

High liquid level alarm: Triggered when the liquid level in the oil separator rises excessively, such as during an outlet blockage.
Oil layer thickness alarm: Activated when the oil or petrol reaches the separator’s maximum capacity.
Sludge layer thickness alarm: When the sludge layer at the bottom of the separator reaches its maximum allowed level.
Separator leakage alarm: Initiated if the liquid level drops unexpectedly, indicating a potential leak.

The system transmits alarms and scheduled measurements either directly as SMS messages to the user’s phone or to the LabkoNet® server, allowing information sharing with other relevant parties. You can easily modify the settings using your phone or via the device’s browser-based interface.

The complete idOil-30 3G package includes:

The idOil-30 3G control unit
Selected idOil sensors
Suitable cable connectors
Mounting kit LMS-SAS2 for the control unit
Mounting kit LMS-SAS5 for sensors

Benefits

Multi supply voltage
Selectable sensor combination with up to three sensors
Polarity-free sensor connection
Automatic sensor and sensor type detection
Quick one touch commissioning
Display for system status and alarm information
Two fully configurable potential free relay outputs
Alarm log
3G data transfer module and antenna
Service and maintenance diary
WLAN connection locally between control unit and laptop/tablet/smartphone to access the built in browser user interface for settings and configuration

More details

idOil-30 Battery (3G) Separator Alarm (Controller) and idOil Sensors

The idOil-30 Battery (3G) alarm system is designed for monitoring liquid levels in oil and sand separators. It consists of the idOil control unit and up to three idOil sensors, which can be any type and are recognized automatically through a one-touch commissioning process. Sensor cables can be extended using cable connectors or connection boxes. The system is also available with a 3G modem for remote communication.

Datasheet

The idOil-30 Battery is a battery-powered control unit designed for oil separator alarm systems. It supports connection of up to three any-type idOil sensors and is available with a 3G modem for remote communication.

Using the idOil-30 Battery with compatible Labkotec sensors, the system can monitor and provide alarms for:

High liquid level: when the liquid level in the oil separator rises excessively, such as during outlet blockages.
Oil layer thickness: when the oil or petrol reaches the separator’s maximum capacity.
Sludge layer thickness: when the sludge layer at the bottom of the separator reaches its maximum level.
Separator leakage: when the liquid level drops unexpectedly, indicating potential leaks.

The idOil-30 Battery model operates in a low-power mode, activating only during scheduled measurement intervals, to receive commands, and to report data. Its power consumption varies based on the set measurement and transmission intervals. The Battery Box 10 provides power for both the idOil-30 Battery and idOil-30 Battery 3G devices.

The complete package includes:

The idOil-30 Battery or idOil-30 Battery 3G control unit
Selected idOil sensors
Suitable cable connectors
Battery Box 10 power supply
Mounting kit LMS-SAS2 for the control unit
Mounting kit LMS-SAS5 for sensors

Benefits

Selectable sensor combination with up to three sensors
Polarity-free sensor connection
Automatic sensor and sensor type detection
Quick one touch commissioning
Display for system status and alarm information
Two fully configurable potential free relay outputs
Alarm log
Available with 3G modem
Service and maintenance diary
WLAN connection locally between control unit and laptop/tablet/smartphone to access the built in browser user interface for settings and configuration

More details

Battery Box 10

Battery Box 10 serves as the power supply for the idOil-30 Battery and idOil-30 Battery 3G alarm systems. The idOil-30 Battery model operates primarily in a low-power mode, activating only during scheduled measurement and transmission intervals, which helps minimize power consumption. Additionally, the system features automatic multiple fusing integrated within the Battery Box 10 to protect the devices from electrical faults.

Datasheet
