Magnetic Level Gauge and Transmitter

Magtech magnetic level indicators are low-maintenance alternatives to sight glasses and other level indicators. They provide non-invasive level indication while reducing leak pointsand fugitive emissions. Combined with our externally mounted transmitters and switches, Magtech magnetic level indicators provide a complete, redundant and cost-effective level solution.

Reliable, low maintenance, redundant measurements are vital to the efficiency of your operation, so you need time tested solutions.Magtech level instruments complement the Rosemount product portfolio and have served the process industry for over 25 years with flexible and creative solutions for a wide variety of applications. Test, inspection and certification are increasingly important, and managing complex requirements reliably in today’s safety conscious environment is a strength of the Magtech brand.

Featured Video enlightened

Introducing Rosemount Magnetic Level Instrumentation


Magtech™ MLT Level Transmitter

The Magtech MLT Level Transmitter can be used as a direct insertion device for measuring levels inside pipes or can be externally attached to a magnetic level indicator for non-invasive measurements. This magnetostrictive level transmitter determines the fluid level in the vessel by detecting the position of the magnets within the float and relays the measurement to the control system. When paired with the Magtech Magnetic Level Indicator, the Magtech MLT offers an optimal solution for applications involving high pressure and high temperature.

Configuration Datasheet Magtech™ LTM
Manual 9930 Magnetic Level Indicator



More details

Rosemount™ 9930 Magnetic Level Indicator

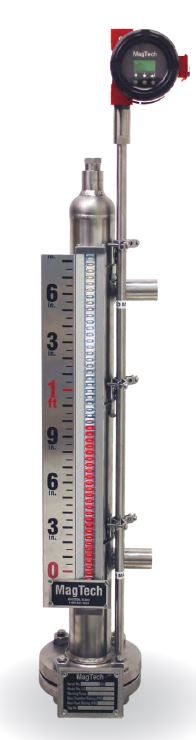

The Rosemount 9930 Magnetic Level Indicator serves as a low-maintenance substitute for sight glasses and other types of level indicators. It offers non-invasive level measurement, minimizing potential leak points and reducing fugitive emissions. The indicator provides a clear level reading that can be seen from distances of up to 100 ft (30 m). It is particularly suitable for high-temperature, high-pressure, and corrosive environments where visual indication of both level and interface is necessary. When paired with Emerson’s externally mounted level transmitters and switches, the Rosemount 9930 delivers a comprehensive, redundant, and cost-effective level measurement solution.






More details
