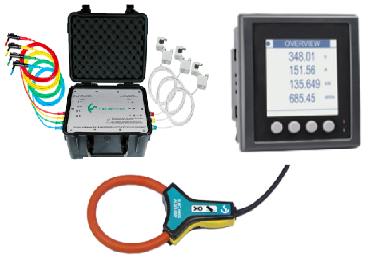

Power Meter

Provides a quick and easy way to obtain accurate measurements of electrical power without the need for extensive data analysis.

It provides information about the amount of electrical energy consumed by a particular electrical load or system. Power meters typically measure various parameters, including voltage, current, power factor, active power (in watts), reactive power (in volt-amperes reactive or VARs), and apparent power (in volt-amperes or VA).

Some advanced power meters also offer features like data logging, communication capabilities, and real-time monitoring for more comprehensive energy management.


Mobile active/reactive power meter CS PM 600

Available up to 100 A or 600 A. Measures voltage, current and calculates:

  • Active power [kW]
  • Apparent power [kVA]
  • Reactive power [kVar]
  • Active energy [kWh]
  • cos phi

The measured data is transferred digitally using the Modbus protocol to DS 500 mobile or DS 400 mobile devices. This allows for convenient recording and monitoring of the data on these devices.



More details

CS PM 5110 Current/Effective Power Meter

For panel mounting. Measures voltage, current and calculates:
  • Active power [kW]
  • Apparent power [kVA]
  • Reactive power [kVar]
  • Active energy [kWh]
  • cos phi
All measured data are transferred digitally (Modbus) to DS 500 mobile/ DS 400 mobile and can be recorded there.


More details

Clamp-On Ammeter Miniflex

An AC RMS current sensor composed of a flexible active part (Rogowski coil model MiniFLEX MA101) connected to a compact digital converter, capable of measuring the current carried on a power conductor up to a value of 400 Aac. The digital converter supplies an output of 4-20 mAdc in linear proportion to the measured current.

INSTRUCTION MANUAL CLAMP-ON AMMETER

More details

CS PM Flex - Current/effective power meter with Rogowski Coils

A current/effective power meter developed by CS Instrument. It is designed to accurately measure electrical parameters in real-time, making it suitable for various applications.

DATA SHEET -  CS PM Flex

More details
