Hazardous Area Batch Controllers

Contrec's commitment to hazardous area applications is evident in their extensive range of Batch Controllers. They cater to both:

ATEX compliance: This ensures their controllers meet the European Union's directives for products used in potentially explosive atmospheres.

Explosion-proof option for Zone 1: This signifies their controllers can be safely used in areas with a high risk of explosive gas, vapor, or dust.

In simpler terms, Contrec offers Batch Controllers specifically designed for industrial environments where there's a potential for explosions. They comply with safety regulations and provide an explosion-proof option for the most hazardous areas.

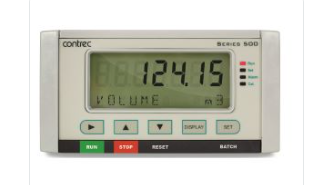

CONTREC 515 – BC01 – Dual Stage Batch Controller

CONTREC 515 – BC03 – Mass Batch Controller

CONTREC 515 – BC01 – Dual Stage Batch Controller

The 515 BC01 is a versatile dual stage batch controller designed for precise measurement of preset quantities using various input types such as volumetric frequency or analog signals. The controller seems to offer fast batch processing, clear local readout, communication capabilities for automation, and quick access to preset values. Additionally, the overrun compensation feature seems to account for system delays, ensuring precise quantities. The compatibility with a wide range of flowmeter outputs and the ability to scale, filter, and apply nonlinear correction to inputs highlight its flexibility and adaptability to different systems.

Data Sheet CONTREC 515 BC01

Manual CONTREC 515 BC01

The 515 BC01 from Contrec is a powerful tool designed for accurate measurement and control of liquids and other materials in batch applications. Here's a breakdown of its key features:

Function:

Dual-stage batch controller for reliable measurement of preset quantities.
Handles fast batching processes.

Input Compatibility:

Accepts both volumetric frequency and analog inputs from a wide range of flow meters.
Compatible with millivolt signals, reed switches, pulse outputs, Namur proximity switches, and analog signals.

Control and Readout:

Provides clear local readout of process data for operator monitoring.
Integrates with communication systems for control in automated setups.
Allows quick access to commonly used presets directly from the front panel.

Accuracy and Compensation:

Ensures precise volume delivery with automatic overrun compensation.
Overrun compensation accounts for system delays like valve closure times.
Offers scaling, filtering, and non-linear correction for various flow meter inputs.
Supports square law and cutoff point adjustments for analog inputs.

Calculations:

Calculates total volume and flow rate based on:
- Frequency and pulse count (for frequency input) using a K-factor for conversion.
- Normalized analog input value (for analog input).

Overrun Compensation:

Automatically calculates the new valve closure point to eliminate under-delivery issues.
Averages overrun from the last three batches for compensation.
Overrun compensation value is valid for new presets within a 20% range.

In essence, the 515 BC01 is a versatile and user-friendly batch controller ideal for diverse industrial applications requiring precise volume control. It offers exceptional compatibility, accurate measurement, and automatic compensation features for reliable batch processing.

Benefits

Caters for volumetric frequency flow inputs from frequency or analog flowmeters
Single or Dual stage control
Quick access to common batch quantities
No-flow, leakage and overflow error detection
Remote RUN/STOP/RESET and BATCH SET functions
Allows for square law and non-linear correction
Storage of 1000 transactions with time and date stamp
Selection of Detail or Basic main menu to suit operator and application
Selectable protocols on serial ports including Modbus RTU and Printer output
Backlit display with LCD backup

More details

CONTREC 515 – BC03 – Mass Batch Controller

The 515 BC03 is a versatile dual stage batch controller designed for precise measurement of preset quantities using various input types such as mass frequency or analog signals. The controller seems to offer fast batch processing, clear local readout, communication capabilities for automation, and quick access to preset values. Additionally, the overrun compensation feature seems to account for system delays, ensuring precise quantities. The compatibility with a wide range of flowmeter outputs and the ability to scale, filter, and apply nonlinear correction to inputs highlight its flexibility and adaptability to different systems.

Data Sheet CONTREC 515 BC03

Manual CONTREC 515 BC03

The 515 BC03 from Contrec is a dual-stage batch controller specifically designed for accurate measurement and control of materials based on mass in industrial processes. Here's a breakdown of its key features:

Function:
- Dual-stage batch controller for reliable measurement of preset mass quantities.
- Handles fast batching processes.
Input Compatibility:
- Accepts both mass frequency and analog inputs from a wide range of flow meters.
- Compatible with millivolt signals, reed switches, pulse outputs, Namur proximity switches, and analog signals.
Control and Readout:
- Provides clear local readout of process data for operator monitoring.
- Integrates with communication systems for control in automated setups.
- Allows quick access to commonly used presets directly from the front panel.
Accuracy and Compensation:
- Ensures precise mass delivery with automatic overrun compensation.
- Overrun compensation accounts for system delays like valve closure times.
- Offers scaling, filtering, and non-linear correction for various flow meter inputs.
- Supports square law and cutoff point adjustments for analog inputs.
Mass Calculations:
- Calculates total mass and mass flow rate based on:
- Frequency and pulse count (for frequency input) using a K-factor for conversion.
- Normalized analog input value (for analog input).
Overrun Compensation:
- Automatically calculates the new valve closure point to eliminate under-delivery issues.
- Averages overrun from the last three batches for compensation.
- Overrun compensation value is valid for new presets within a 20% range.

Key Difference from BC01:

The BC03 specifically measures and controls based on mass, while the BC01 is designed for volume measurement. This is reflected in the calculation formulas used (mass vs volume).

In essence, the 515 BC03 is a powerful and versatile batch controller ideal for industrial applications requiring precise mass control in fast-paced environments. It offers a wide range of input compatibility, accurate mass calculations, and automatic compensation features for reliable batch processing.

Benefits

Tailored for mass frequency flow input
Single or Dual stage control
Quick access to common batch quantities
No-flow, leakage and overflow error detection
Remote RUN/STOP/RESET
Allows for non-linear correction
Storage of 100 transactions with time and date stamp
Selection of second language and user tags
Selectable protocols on serial ports including Modbus RTU and Printer output
Backlit display with LCD backup

More details
