Radioactive Level Switch

Radioactive Level Switch

Our radiometric level switches are used in a wide variety of industries, providing either a high or low level alarm. The measurement is carried out non-contacting and non-intrusive.

All components of the measurement system are mounted on the outer wall of the vessel, without any contact with the measured material. They can be installed on all types of vessels or bunkers like hot storage tanks, vessels with agitators, high-pressure reactors, cyclones or feeder chutes.

Berthold Mini-Switch LB 471

Berthold SENSseries LB 480 LS

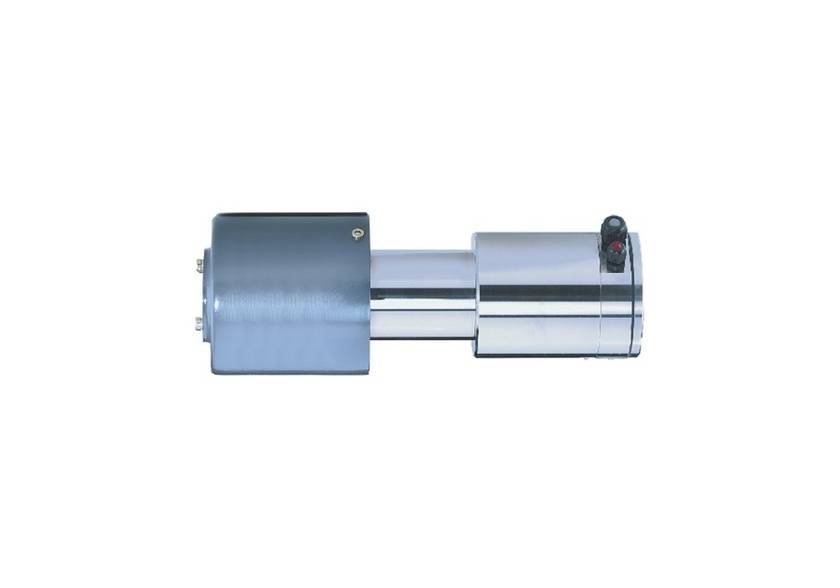

Berthold Mini-Switch LB 471

The level switch measuring system LB 471 is used for point level measurements, providing either high level or low level alarm.

The Mini-Switch LB 471 is available with proven 2-wire technology. The measuring system includes a separate transmitter, ensuring easy calibration and operation as well as providing a local display of the output.

Continuous Level Measurement Brochures

LB 471 EU Certificate

LB 471 ATEX (Europe) Certificate

LB 471 Wall Housing + Cassette + 19" Rack ATEX (Europe) Certificate

LB 471 Level switch / Geiger-Mueller-Detector Datasheet

LB 471 Level switch / SuperSENS Datasheet

LB 471 Level switch / NaI-Scinti Datasheet

LB 471 Level Switch Measurement Manual

The Berthold Mini-Switch LB 471 is a straightforward and dependable solution for point level measurement applications in industrial settings.

X-ray Interference Protection (XIP)
With this function, weld tests no longer cause sudden fluctuations in the measured value. When weld tests are detected, the measured value is frozen until the external radiation event ends.

Function:
Provides high-level or low-level alarms for liquids or bulk solids.
Ideal for applications requiring a simple on/off indication of whether a material has reached a specific level in a tank or vessel.

Technology:
Employs proven 2-wire technology for ease of installation and operation.
Requires minimal wiring, reducing setup complexity.

Design:
Separate transmitter unit simplifies calibration and operation.
Calibration adjustments and status monitoring can be performed conveniently without directly interacting with the sensor.
Local display on the transmitter provides clear level switch output visualization.

Overall, the Berthold Mini-Switch LB 471 is a user-friendly and cost-effective solution for basic point level measurement tasks. Its simple design, 2-wire technology, and separate transmitter for easy calibration make it a suitable choice for various industrial applications.

Benefits

Accurate and reliable
Universally applicable for all container types,
no modifications to the vessel required
Maintenance free, no wear and tear
Long life time

More details

Berthold SENSseries LB 480 LS

The SENSseries LB 480 can be easily installed as a radiometric level switch on vessels and chemical reactors, even where other measurement systems reach their limits due to vessel geometry or measurement conditions. Our level switch measurement is used in all demanding industries. Wherever one or more limit levels of liquids or bulk solids are monitored, our contactless level measurement can be used, even with very thick-walled or large containers.

SENSseries LB 480 level measurement is particularly suited for demanding measuring tasks in safety-related applications. This line offers detectors certified for use in SIL 2 systems. Berthold is the first manufacturer of SIL certified radiometric level, level switch (min./max. alarm) and density measurement systems. SIL 3 can be achieved with the redundant installation of two LB 480 SIL 2 systems.

High reliability is supported by important diagnostic functions, such as permanent monitoring of the detector functionality by crosschecking the cosmic background radiation and much more. This guarantees outstanding operational safety.

Cosmic radiation control also makes it possible to keep the required source activity very low.

Berthold's LB480 SIL model is unique in the radiometric gauge market for being certified for density and low level switch measurements, in addition to high level switch and continuous level measurements.

LB 480 Compact Field Device

Continuous Level Measurement Brochures

LB 480 ATEX (Europe) Certificate

LB 480 Ex Certificate

LB 480 FM (USA) Certificate

LB 480 Inmetro (Brazil) Certificate

LB 480 NEPSI (Chinese) Certificate

LB 480 CSA NEC-CEC (Canada, USA) Certificate

LB 480 FM (Canada) Certificate

LB 480 IECEx (International) Certificate

LB 480 Level HART Certificate

LB 480 Non-Ex Certificate

LB 480 SIL Certificate

SENSseries LB 480 Level Measurement Datasheet

TowerSENS LB 480 Level Measurement Datasheet

LB 480 Level Measurement Manual

The Berthold SENSseries LB 480 demonstrates its versatility by excelling as a radiometric level switch, particularly in challenging industrial settings. Here's a closer look at its key strengths:

Designed for Tough Environments:
Overcomes Limitations: The LB 480 thrives where other measurement systems struggle due to complex vessel geometry or harsh measurement conditions.
Applications in Demanding Industries: Widely used across various demanding industries, the LB 480 caters to diverse level switch requirements.

Level Switch Functionality:
Non-Contact Measurement: Utilizes radiometric technology for precise and contactless level detection, eliminating the need for physical contact with the measured material.
Limit Level Monitoring: Effectively monitors one or more critical level thresholds (minimum or maximum) for liquids or bulk solids.
Suitability for Various Tanks: Functions well with thick-walled or large containers, overcoming limitations that might hinder other level switch technologies.

Additional Advantages (depending on specific resources):
High Reliability: The LB 480 might boast exceptional reliability with minimal maintenance requirements, reducing downtime and maintenance costs.
Fast Response Time: Some resources might mention the LB 480's ability to provide rapid response times, ensuring timely alerts when limit levels are reached.

In essence, the Berthold SENSseries LB 480 is a dependable radiometric level switch solution for demanding industrial applications. Its ability to function in complex environments, handle various materials, and work with diverse tank configurations makes it a valuable tool for reliable limit level monitoring across a wide range of industries.

Benefits

Compact field probe with integrated evaluation unit
Quick Start menu for easy and quick start up
Continuous self-monitoring
SIL 2 or SIL 3 for level, level switch and density
External radiation detection - XIP (X-ray interference protection)

More details
